Horn Supermini 109 Ø ≥ 6 mm R/L109.0005/0010...4.6/6.7

R/L109.1828/1838...6/7		R/L109.1828/1838.04...6/7		R/L109.1828/1838...HV6/HV7		R/L109.1828/1838.04...HV6/HV7		R/L109.4545...3.6/5.7
R/L109.0100/0200...1.6/3.6		R/L109.0150/0200...4.6/6.6		R/L109.0005/0010...4.6/6.7		R/L109.3028...3.6/5.7		R/L109.0915/1730...3.6/5.7

Insert Ø ≥ 6 mm
Internal Grooving Full Radius		Internal Boring		Internal Coolant

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades

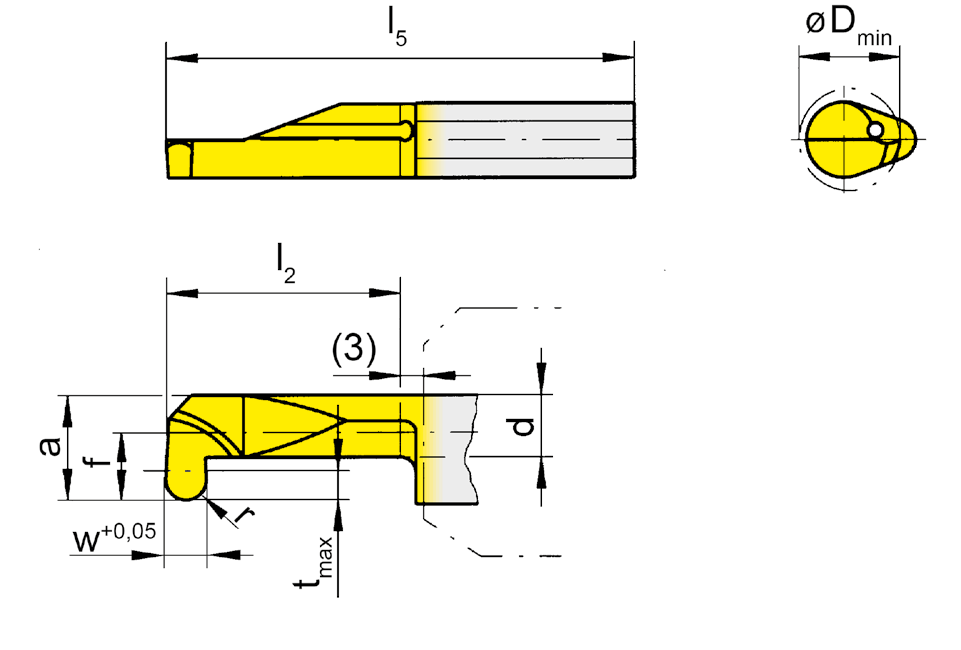

Part number	w	r	f	a	d	l₂	l₅	t_max	D_min	HIS	aaa	TH35
R109.0005.4.6	1	0.5	2.8	5.7	3.7	25	43	1.8	6	109140		⃤
R109.0005.6.7	1	0.5	3.8	6.7	4	35	53	2.5	7	109140		⃤
R109.0007.4.6	1.5	0.75	2.8	5.7	3.7	25	43	1.8	6	109140		⃤
R109.0007.6.7	1.5	0.75	3.8	6.7	4	35	53	2.5	7	109140		⃤
R109.0010.4.6	2	1	2.8	5.7	3.7	25	43	1.8	6	109140		⃤
R109.0010.6.7	2	1	3.8	6.7	4	35	53	2.5	7	109140		▲
L109.0005.4.6	1	0.5	2.8	5.7	3.7	25	43	1.8	6	109140		⃤
L109.0005.6.7	1	0.5	3.8	6.7	4	35	53	2.5	7	109140		⃤
L109.0007.4.6	1.5	0.75	2.8	5.7	3.7	25	43	1.8	6	109140		⃤
L109.0007.6.7	1.5	0.75	3.8	6.7	4	35	53	2.5	7	109140		⃤
L109.0010.4.6	2	1	2.8	5.7	3.7	25	43	1.8	6	109140		⃤
L109.0010.6.7	2	1	3.8	6.7	4	35	53	2.5	7	109140		⃤
											P
											M
											K
											N
											S
											H
