Horn Supermini 109 Ø ≥ 6 mm R/LR109.3028/3038...3.6/5.7

R/L109.1828/1838...6/7		R/L109.1828/1838.04...6/7		R/L109.1828/1838...HV6/HV7		R/L109.1828/1838.04...HV6/HV7		R/L109.4545...3.6/5.7
R/L109.0100/0200...1.6/3.6		R/L109.0150/0200...4.6/6.6		R/L109.0005/0010...4.6/6.7		R/L109.3028...3.6/5.7		R/L109.0915/1730...3.6/5.7

Insert Ø ≥ 6 mm
Internal Back Turning		Internal Coolant

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades

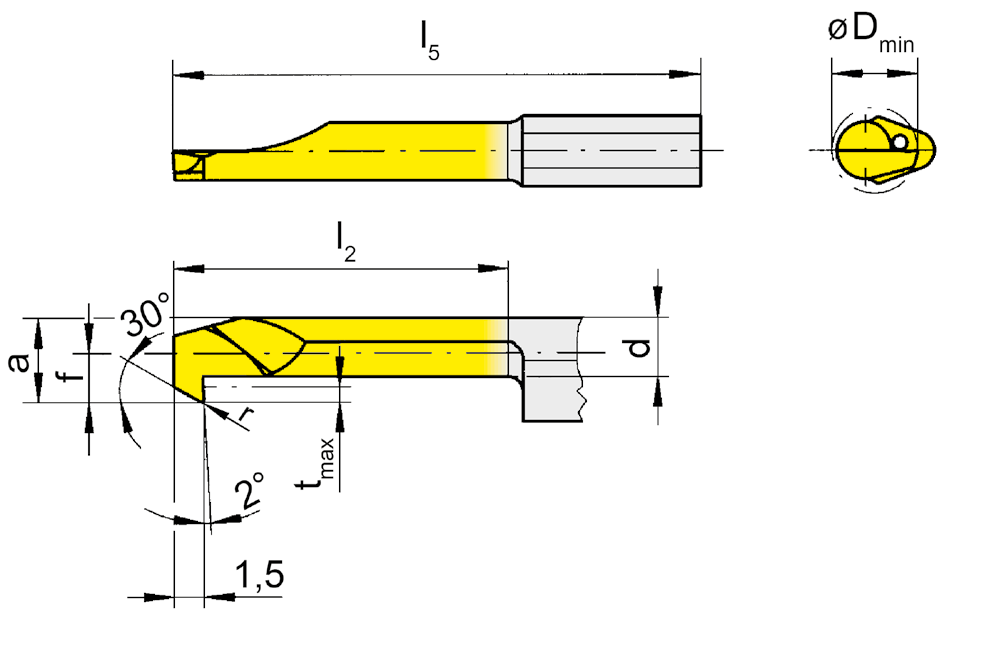

Part number	r	f	a	d	l₂	l₅	t_max	D_min	HIS	aaa	TH35
R109.3028.3.6	0.2	2.8	5.7	3.7	20	38	1.8	6	109140		⃤
R109.3028.5.6	0.2	2.8	5.7	3.7	30	48	1.8	6	109140		⃤
R109.3038.3.7	0.2	3.8	6.7	4	20	38	2.5	7	109140		▲
R109.3038.5.7	0.2	3.8	6.7	4	30	48	2.5	7	109140		▲
L109.3028.3.6	0.2	2.8	5.7	3.7	20	38	1.8	6	109140		⃤
L109.3028.5.6	0.2	2.8	5.7	3.7	30	48	1.8	6	109140		⃤
L109.3038.3.7	0.2	3.8	6.7	4	20	38	2.5	7	109140		⃤
										P
										M
										K
										N
										S
										H

We reserve the right to make technical changes.
