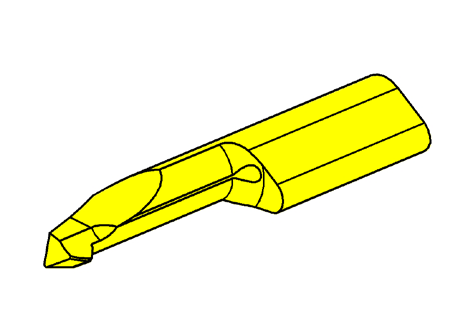

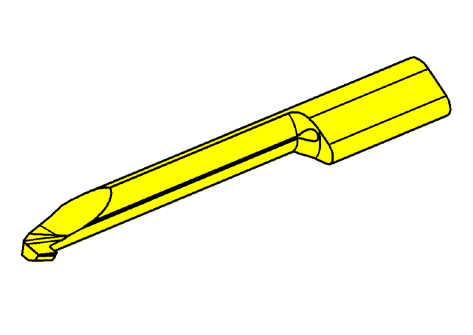

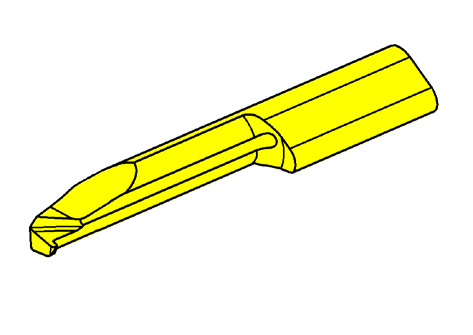

Supermini 109 |
| Insert Ø ≥ 6 mm | |||||||||
 Internal Thread |
 Internal Coolant |
 Partial Profile Thread |
 Trapezoidal thread |
||||||
 Only right-hand thread can be produced |
 |
| R = right hand version shown ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||

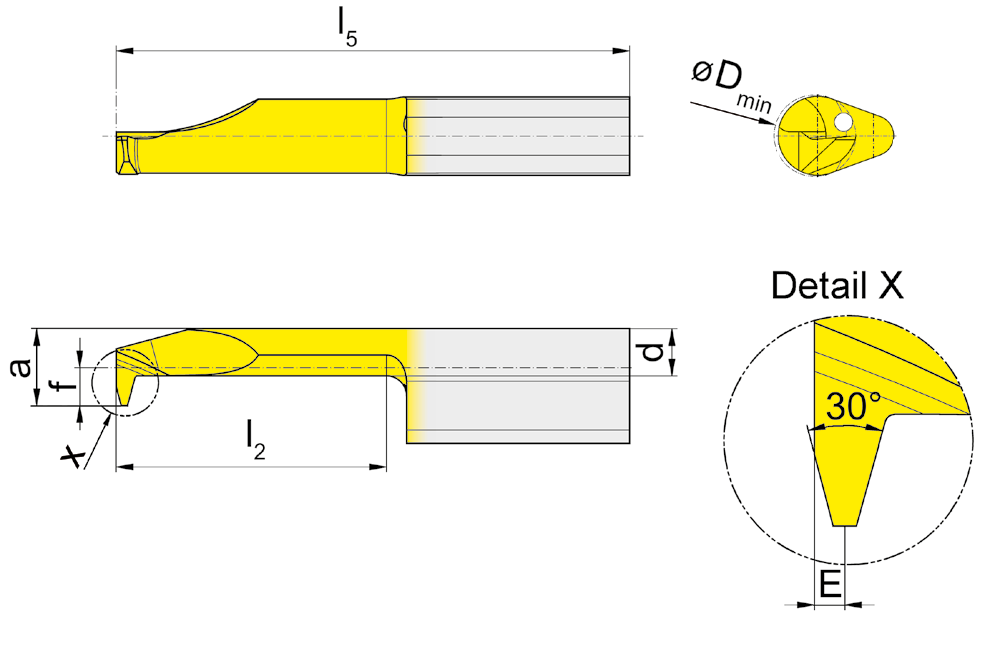

| Part number | P | E | f | a | d | l2 | l5 | Dmin | HIS | aaa | TH35 |
| R109.0915.3.6 | 1.5 | 0.6 | 2.8 | 5.7 | 3.5 | 20 | 38 | 6 | 109140 | ▲ | |
| R109.1220.3.6 | 2 | 0.8 | 2.8 | 5.7 | 3.5 | 20 | 38 | 6 | 109140 | ▲ | |
| R109.1220.3.7 | 2 | 0.8 | 3.8 | 6.7 | 4.8 | 20 | 38 | 7 | 109140 | ▲ | |
| R109.1220.5.7 | 2 | 0.8 | 3.8 | 6.7 | 4.8 | 30 | 48 | 7 | 109140 | ▲ | |
| R109.1730.3.7 | 3 | 1.2 | 3.8 | 6.7 | 4.3 | 20 | 38 | 7 | 109140 | ▲ | |
| P | |||||||||||
| M | |||||||||||
| K | |||||||||||
| N | |||||||||||
| S | |||||||||||
| H | |||||||||||
We reserve the right to make technical changes.
