Supermini 110 |
| B110 Toolholder | |||||||||
 Internal Grooving |
 Internal Boring |
 Internal Coolant |
|||||||

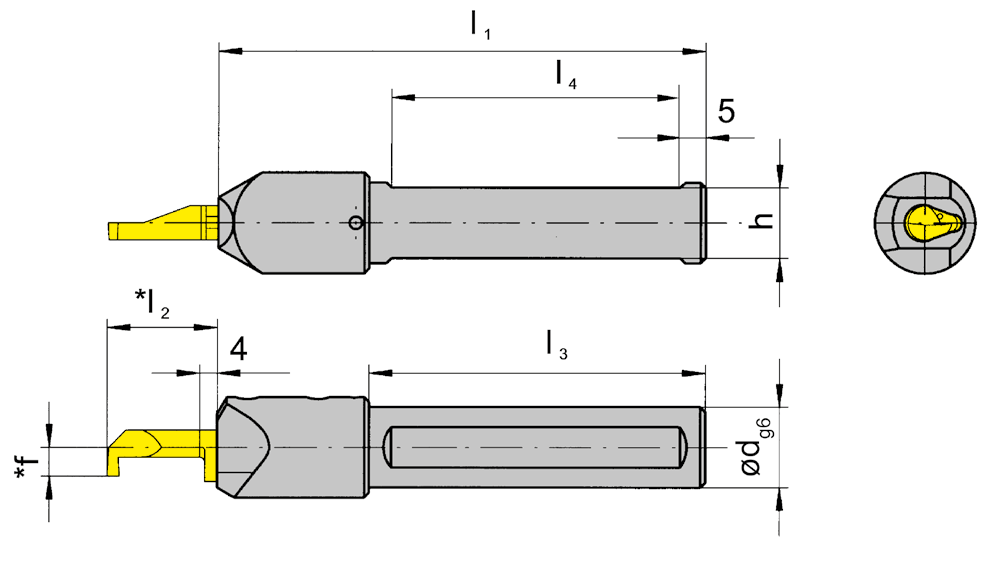

 Picture = right hand cutting version |
 |
| Part number | d | l1 | l3 | h | l4 | HWS |
| B110.0016.02 | 16 | 100 | 70 | 14 | 55 | 110260 |
| B110.0020.02 | 20 | 100 | - | 18 | 55 | 110260 |
| B110.0022.02 | 22 | 100 | - | 20 | 55 | 110260 |
| B110.0025.02 | 25 | 100 | - | 23 | 55 | 110260 |
* f ,l2 see inserts type 110 |
||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B110... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
