Supermini 110 |
| B110TS Toolholder | |||||||||
 Internal Grooving |
 INDEX |
 Internal Boring |
 Internal Coolant |
||||||

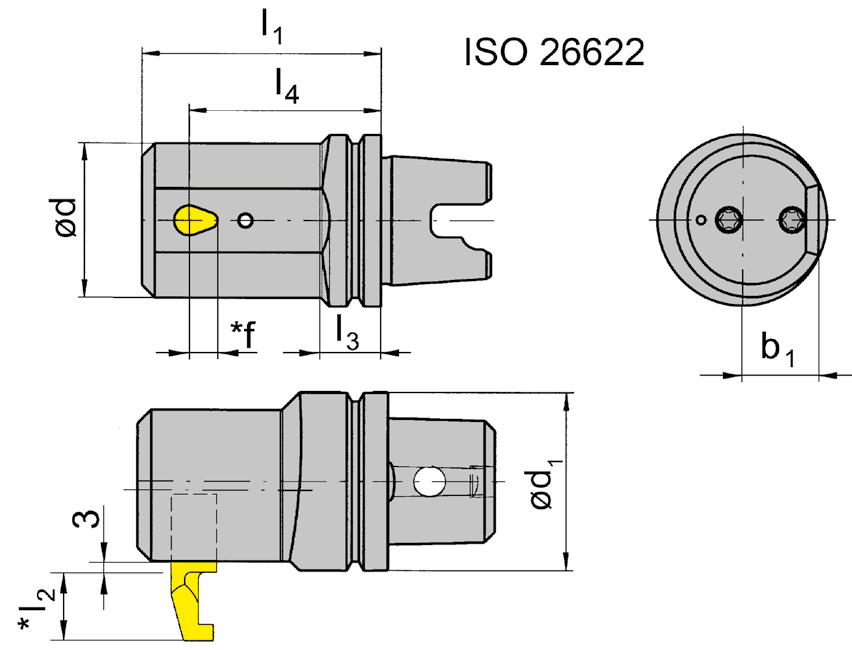

 R = right hand version shown |
 |
| Part number | d1 | l3 | d | l1 | l4 | b1 | Machine Type | HWS |
| RB110.TS40.2.2.02 | 40 | 14 | 36 | 56 | 45 | 18 | INDEX MS32 | 110260 |
* f ,l2 see inserts type 110 for INDEX Multi spindle machines |
||||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| RB110.TS40.2.2.02 | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
