Supermini 110 |
| B110 Toolholder | |||||||||
 Face Grooving |
 Internal Coolant |
||||||||

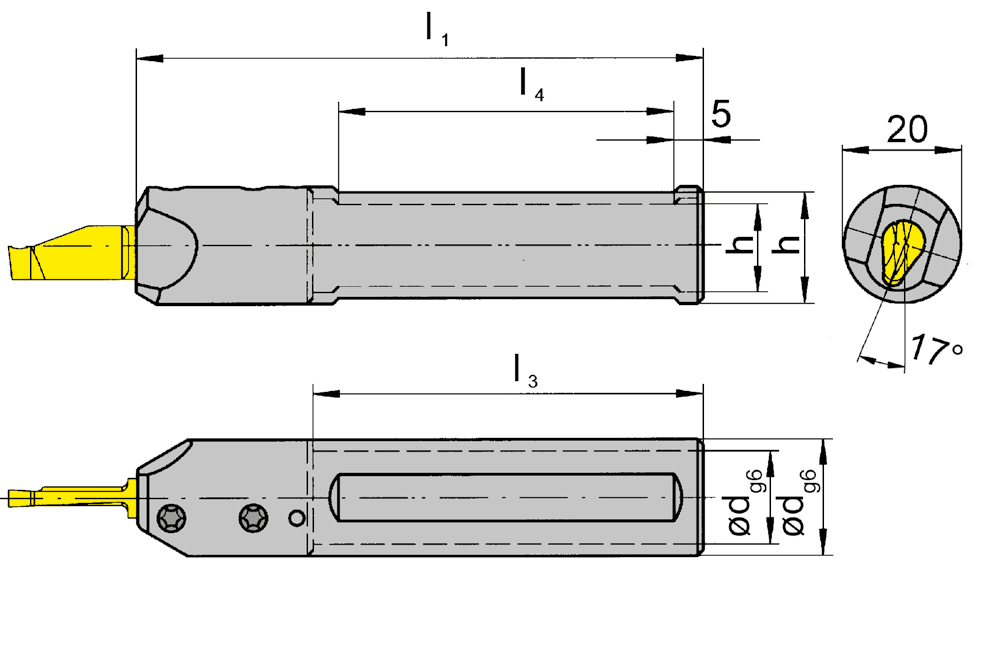

 R = right hand version shown L = left hand version |
 |
| Part number | d | l1 | l3 | h | l4 | HWS |
| RB110.0016.16.2 | 16 | 100 | 70 | 14 | 55 | 110260 |
| RB110.0020.16.2 | 20 | 100 | - | 18 | 55 | 110260 |
| LB110.0016.16.2 | 16 | 100 | 70 | 14 | 55 | 110260 |
| LB110.0020.16.2 | 20 | 100 | - | 18 | 55 | 110260 |
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LB110... | 6.075T15P | T15PQ |
We reserve the right to make technical changes.
