Supermini 110 |
 R/L110.1829.7.6/9.8 |
R/L110.2129/2140.7.6/9.8 |
R/L110.1829.9.H6/H8 |
| Insert Ø ≥ 6 mm | |||||||||
 Cutting Angle |
 Internal Boring and Grooving Chamfer |
 Internal Boring |
 Internal Coolant |
||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||||

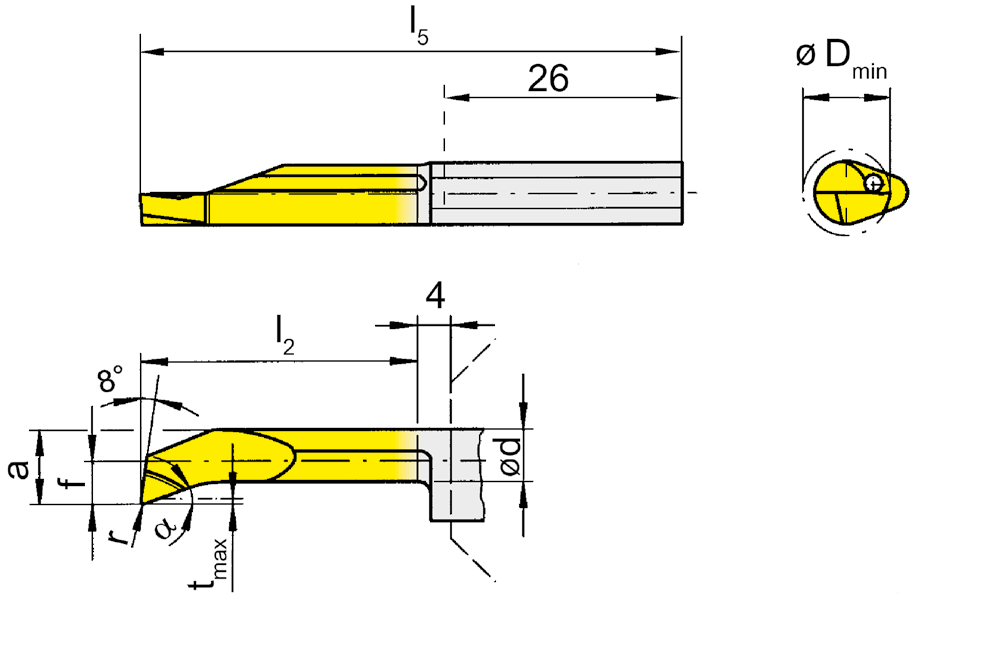

| Part number | r | f | a | d | l2 | l5 | tmax | Dmin | α | HIS | aaa | EG35 | TH35 | TI25 |
| R110.1829.7.6 | 0.2 | 2.9 | 5.7 | 4.8 | 40 | 70 | 0.5 | 6 | 21° | 110260 | ▲ | ▲ | ▲ | |
| R110.1829.9.6 | 0.2 | 2.9 | 5.7 | 4.8 | 50 | 80 | 0.5 | 6 | 21° | 110260 | ▲ | ▲ | ▲ | |
| R110.1829.9.8 | 0.2 | 4 | 7.4 | 6 | 50 | 80 | 0.5 | 8 | 21° | 110260 | ▲ | ▲ | ▲ | |
| L110.1829.7.6 | 0.2 | 2.9 | 5.7 | 4.8 | 40 | 70 | 0.5 | 6 | 21° | 110260 | ▲ | ▲ | ▲ | |
| L110.1829.9.6 | 0.2 | 2.9 | 5.7 | 4.8 | 50 | 80 | 0.5 | 6 | 21° | 110260 | ▲ | ▲ | ▲ | |
| L110.1829.9.8 | 0.2 | 4 | 7.4 | 6 | 50 | 80 | 0.5 | 8 | 21° | 110260 | ▲ | ▲ | ▲ | |
| P | ||||||||||||||
| M | ||||||||||||||
| K | ||||||||||||||
| N | ||||||||||||||
| S | ||||||||||||||
| H | ||||||||||||||
We reserve the right to make technical changes.
