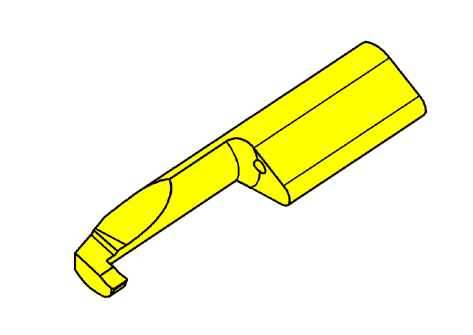

Supermini 110 |
 R/L110.0100/0300...5.0/9.0 |
 R110.0200.02.3.8 |
| Insert Ø ≥ 8 mm | |||||||||
 Internal Grooving |
 Internal Coolant |
||||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||

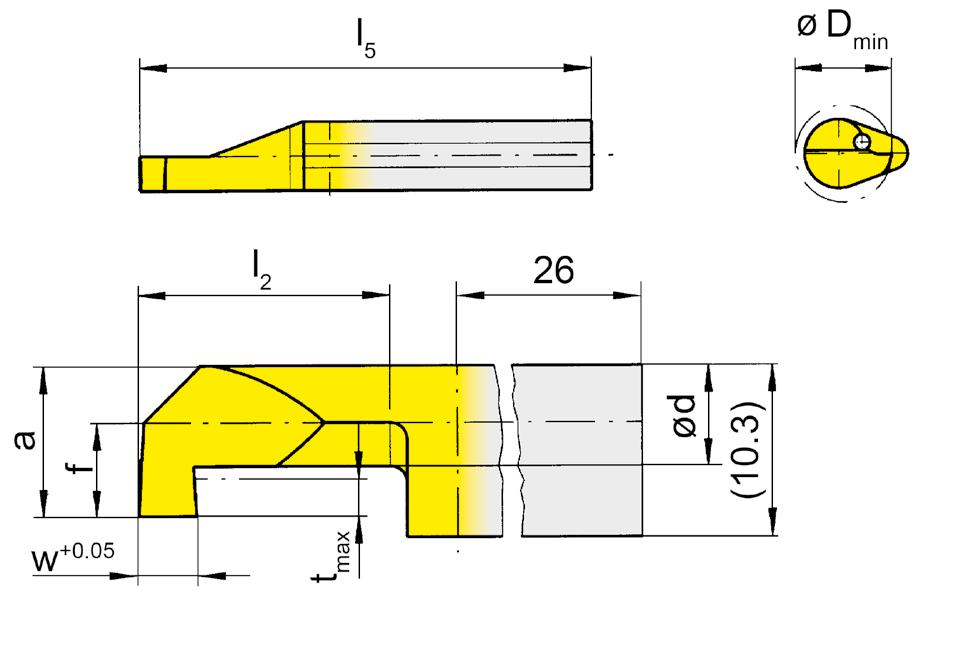

| Part number | w | f | a | d | l2 | l5 | tmax | Dmin | HIS | aaa | EG35 | TI25 | TN35 |
| R110.0100.5.8 | 1 | 4 | 7.4 | 4.2 | 30 | 60 | 2.8 | 8 | 110260 | ▲ | ▲ | ||
| R110.0200.5.8 | 2 | 4 | 7.4 | 4.2 | 30 | 60 | 2.8 | 8 | 110260 | ▲ | ⃤ | ▲ | |
| R110.0250.5.8 | 2.5 | 4 | 7.4 | 4.2 | 30 | 60 | 2.8 | 8 | 110260 | ▲ | ⃤ | ▲ | |
| R110.0100.7.8 | 1 | 4 | 7.4 | 4.2 | 40 | 70 | 2.8 | 8 | 110260 | ▲ | ▲ | ||
| R110.0200.7.8 | 2 | 4 | 7.4 | 4.2 | 40 | 70 | 2.8 | 8 | 110260 | ▲ | ▲ | ||
| R110.0250.7.8 | 2.5 | 4 | 7.4 | 4.2 | 40 | 70 | 2.8 | 8 | 110260 | ▲ | ▲ | ||
| R110.0100.5.0 | 1 | 6 | 9.4 | 5 | 30 | 60 | 4 | 10 | 110260 | ▲ | ▲ | ||
| R110.0200.5.0 | 2 | 6 | 9.4 | 5 | 30 | 60 | 4 | 10 | 110260 | ▲ | ⃤ | ▲ | |
| R110.0300.5.0 | 3 | 6 | 9.4 | 5 | 30 | 60 | 4 | 10 | 110260 | ▲ | ⃤ | ▲ | |
| R110.0100.9.0 | 1 | 6 | 9.4 | 5 | 50 | 80 | 4 | 10 | 110260 | ⃤ | ▲ | ||
| R110.0200.9.0 | 2 | 6 | 9.4 | 5 | 50 | 80 | 4 | 10 | 110260 | ▲ | ▲ | ||
| R110.0300.9.0 | 3 | 6 | 9.4 | 5 | 50 | 80 | 4 | 10 | 110260 | ▲ | ▲ | ||
| L110.0100.5.8 | 1 | 4 | 7.4 | 4.2 | 30 | 60 | 2.8 | 8 | 110260 | ▲ | |||
| L110.0200.5.8 | 2 | 4 | 7.4 | 4.2 | 30 | 60 | 2.8 | 8 | 110260 | ▲ | ▲ | ||
| L110.0250.5.8 | 2.5 | 4 | 7.4 | 4.2 | 30 | 60 | 2.8 | 8 | 110260 | ▲ | ▲ | ||
| L110.0100.7.8 | 1 | 4 | 7.4 | 4.2 | 40 | 70 | 2.8 | 8 | 110260 | ⃤ | ▲ | ||
| L110.0200.7.8 | 2 | 4 | 7.4 | 4.2 | 40 | 70 | 2.8 | 8 | 110260 | ▲ | ▲ | ||
| L110.0250.7.8 | 2.5 | 4 | 7.4 | 4.2 | 40 | 70 | 2.8 | 8 | 110260 | ⃤ | ▲ | ||
| L110.0100.5.0 | 1 | 6 | 9.4 | 5 | 30 | 60 | 4 | 10 | 110260 | ▲ | ▲ | ||
| L110.0200.5.0 | 2 | 6 | 9.4 | 5 | 30 | 60 | 4 | 10 | 110260 | ▲ | ▲ | ||
| L110.0300.5.0 | 3 | 6 | 9.4 | 5 | 30 | 60 | 4 | 10 | 110260 | ▲ | ▲ | ||
| L110.0100.9.0 | 1 | 6 | 9.4 | 5 | 50 | 80 | 4 | 10 | 110260 | ⃤ | ⃤ | ||
| L110.0200.9.0 | 2 | 6 | 9.4 | 5 | 50 | 80 | 4 | 10 | 110260 | ⃤ | ▲ | ||
| L110.0300.9.0 | 3 | 6 | 9.4 | 5 | 50 | 80 | 4 | 10 | 110260 | ⃤ | ⃤ | ||
| P | |||||||||||||
| M | |||||||||||||
| K | |||||||||||||
| N | |||||||||||||
| S | |||||||||||||
| H | |||||||||||||
We reserve the right to make technical changes.
