Supermini A110 |
 R/LA110.2030/5030...3.0/5.0 |
 R/LA110.2030.15.5.0 |

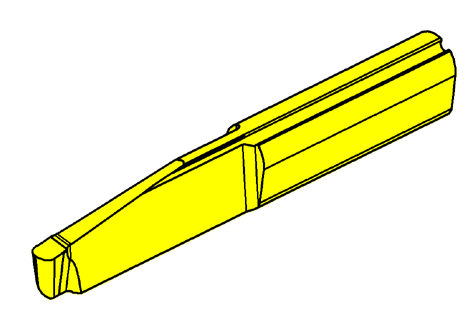

| Insert | |||||||||
 Face Grooving |
 Internal Coolant |
||||||||
 |
|

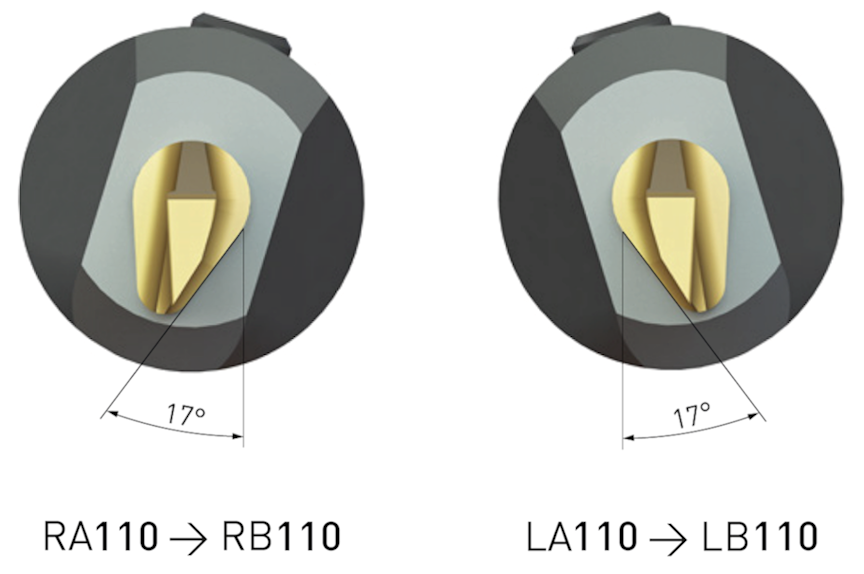

| L = left hand version shown R = right hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||

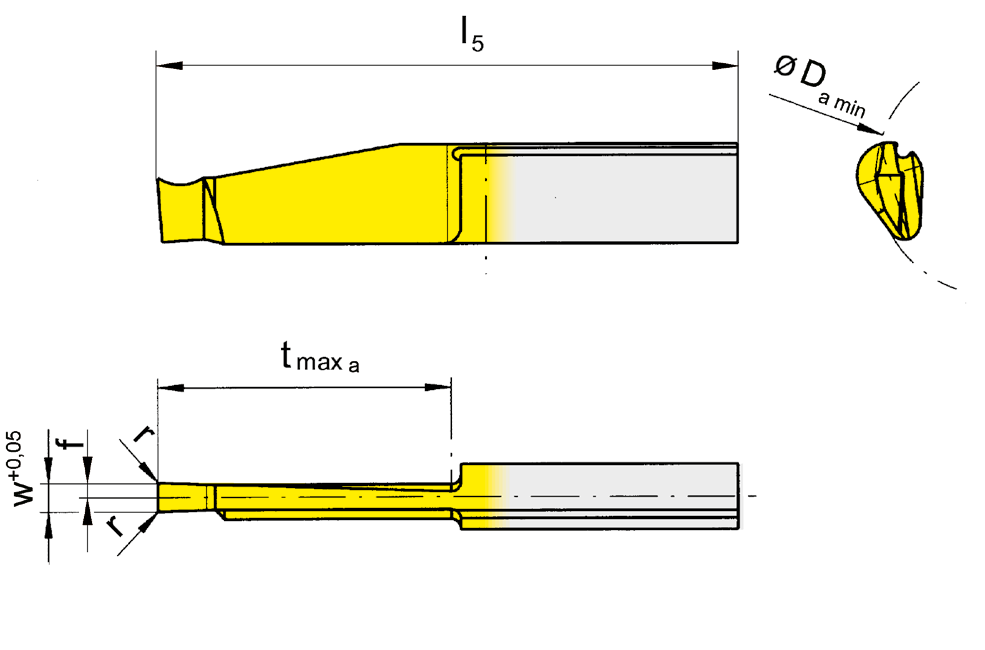

| Part number | w | r | f | l5 | tmax a | Da min | HIS | aaa | EG35 | TH35 | TI25 | TN35 |
| RA110.2030.3.0 | 3 | 0.2 | 1.5 | 50 | 20 | 20 | 110260 | ▲ | ▲ | ▲ | ▲ | |
| RA110.2030.5.0 | 3 | 0.2 | 1.5 | 60 | 30 | 20 | 110260 | ▲ | ▲ | ▲ | ▲ | |
| RA110.5030.3.0 | 3 | 0.2 | 1.5 | 50 | 20 | 50 | 110260 | ▲ | ▲ | |||
| RA110.5030.5.0 | 3 | 0.2 | 1.5 | 60 | 30 | 50 | 110260 | ▲ | ▲ | |||
| LA110.2030.3.0 | 3 | 0.2 | 1.5 | 50 | 20 | 20 | 110260 | ▲ | ▲ | ▲ | ▲ | |
| LA110.2030.5.0 | 3 | 0.2 | 1.5 | 60 | 30 | 20 | 110260 | ▲ | ▲ | ▲ | ▲ | |
| LA110.5030.3.0 | 3 | 0.2 | 1.5 | 50 | 20 | 50 | 110260 | ▲ | ▲ | |||
| LA110.5030.5.0 | 3 | 0.2 | 1.5 | 60 | 30 | 50 | 110260 | ▲ | ▲ | |||
 |
P | |||||||||||
| M | ||||||||||||
| K | ||||||||||||
| N | ||||||||||||
| S | ||||||||||||
| H | ||||||||||||
We reserve the right to make technical changes.
