Mini 107 |
| Insert Ø ≥ 6.8 mm | |||||||||
 Internal Grooving with Chamfer |
 Internal Boring and Grooving Chamfer |
 Internal Chamfering |
 Internal Back Turning |
||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||

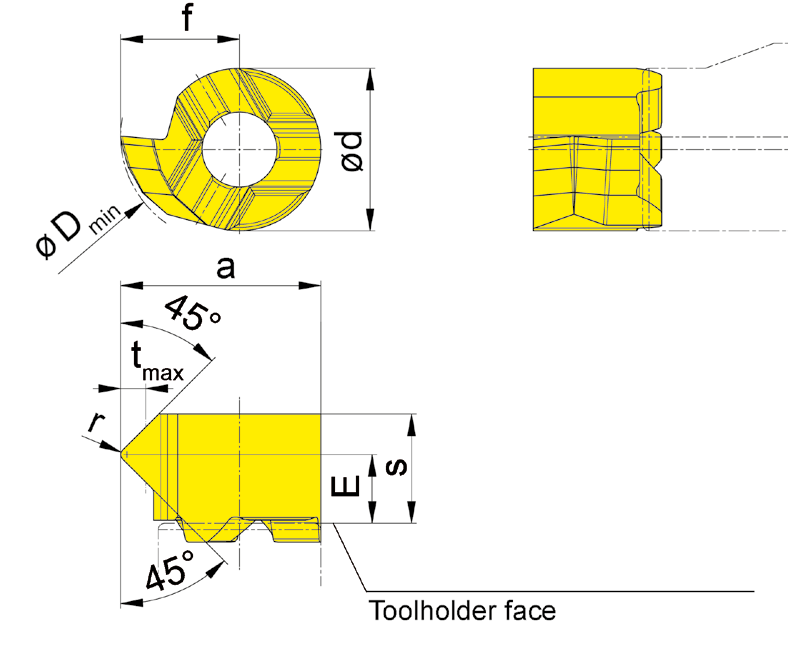

| Part number | E | s | f | a | r | d | tmax | Dmin | HIS | aaa | EG55 | TH35 |
| R107.4545.1.02 | 2.2 | 3.5 | 3.8 | 6.4 | 0.2 | 5.2 | 0.8 | 6.8 | 107052R | ▲ | ▲ | |
| L107.4545.1.02 | 2.2 | 3.5 | 3.8 | 6.4 | 0.2 | 5.2 | 0.8 | 6.8 | 107052L | ⃤ | ⃤ | |
| P | ||||||||||||
| M | ||||||||||||
| K | ||||||||||||
| N | ||||||||||||
| S | ||||||||||||
| H | ||||||||||||
We reserve the right to make technical changes.
