Mini 108 |
| B108 Toolholder | |||||||||
 Internal Grooving |
 Internal Boring |
 Internal Coolant |
|||||||

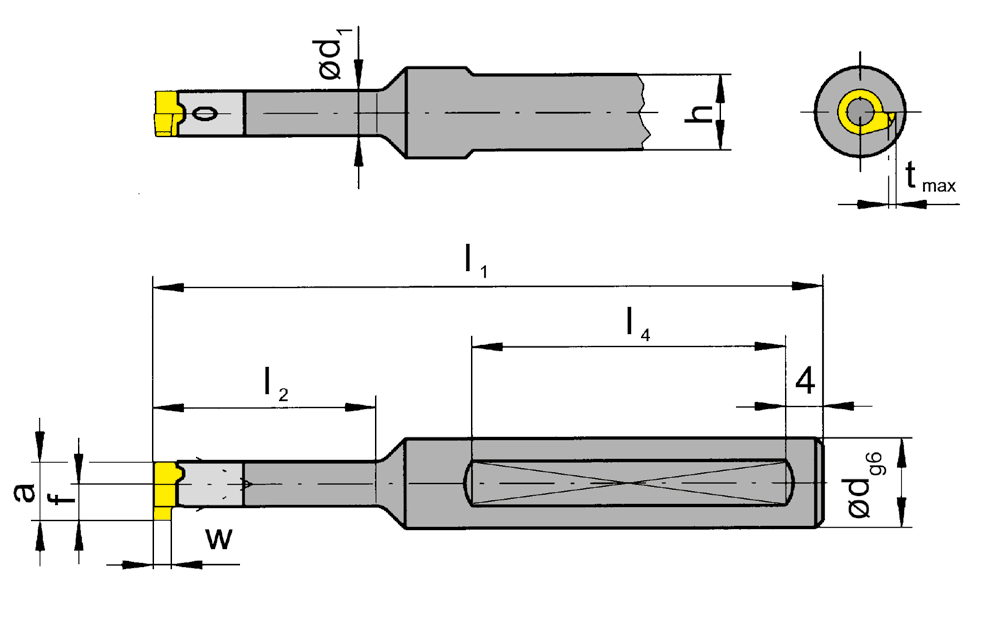

 Picture = right hand cutting version |
 |
| Part number | d | l1 | l2 | h | l4 | d1 | HWS |
| B108.0006.01A | 6 | 65 | - | - | - | - | 108060R • 108060L |
| B108.0008.00 | 8 | 60 | 12.5 | 7 | 35 | 6 | 108060R • 108060L |
| B108.0008.01 | 8 | 70 | 21 | 7 | 40 | 6 | 108060R • 108060L |
| B108.0012.00 | 12 | 70 | 12.5 | 11 | 40 | 6 | 108060R • 108060L |
| B108.0012.01 | 12 | 80 | 21 | 11 | 45 | 6 | 108060R • 108060L |
| B108.0012.02 | 12 | 90 | 30 | 11 | 45 | 6 | 108060R • 108060L |
| B108.0012.03 | 12 | 100 | 42 | 11 | 45 | 6 | 108060R • 108060L |
w, a, tmax and f see inserts |
|||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B108... | 2.6.5T8EP | T8PL |
We reserve the right to make technical changes.
