Mini 108 |
 RS108.0820... |
 R/L108.1846.02 |
 R/LS108.1846... |
 R/L108.3046.02 |
 R/L108.4748... |
 R/L108.3348... |
 R/L108.4545.02 |
| Insert Ø ≥ 7.8 mm | |||||||||

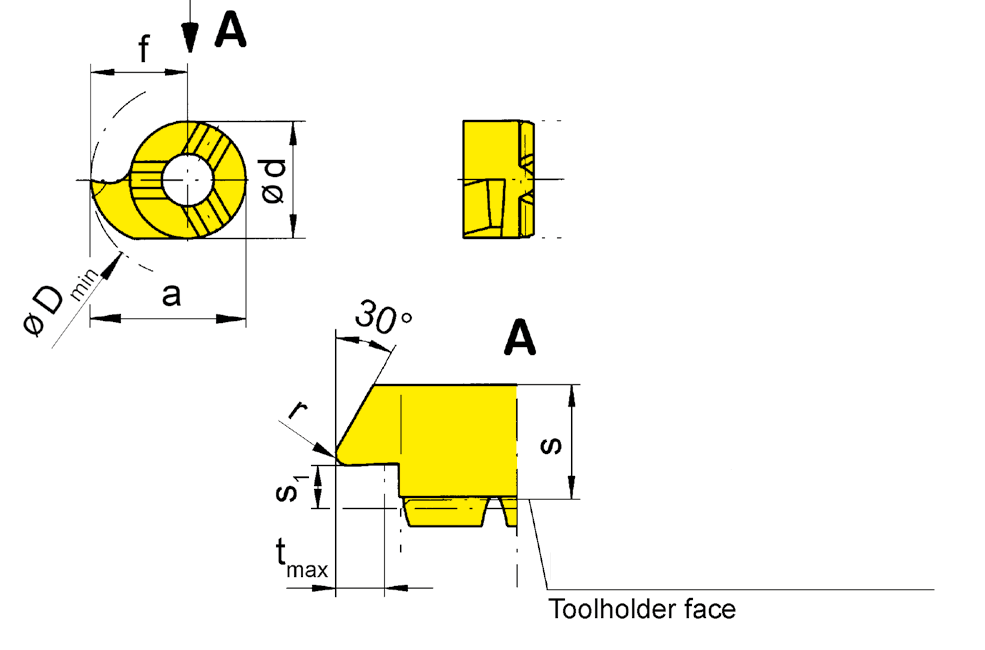

 Internal Back Turning |
|||||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||
| Part number | s | f | a | r | s1 | d | tmax | Dmin | HIS | aaa | EG55 | TH35 | TN35 |
| R108.3046.02 | 3.6 | 4.65 | 7.65 | 0.2 | 0.8 | 6 | 1.3 | 7.8 | 108060R | ▲ | ▲ | ▲ | |
| L108.3046.02 | 3.6 | 4.65 | 7.65 | 0.2 | 0.8 | 6 | 1.3 | 7.8 | 108060L | ⃤ | ⃤ | ▲ | |
| P | |||||||||||||
| M | |||||||||||||
| K | |||||||||||||
| N | |||||||||||||
| S | |||||||||||||
| H | |||||||||||||
We reserve the right to make technical changes.
