Mini 108 |
 RS108.0820... |
 R/L108.1846.02 |
 R/LS108.1846... |
 R/L108.3046.02 |
 R/L108.4748... |
 R/L108.3348... |
 R/L108.4545.02 |
| Insert Ø ≥ 7.8 mm | |||||||||
 Internal Grooving with Chamfer |
 Internal Boring and Grooving Chamfer |
 Internal Chamfering |
 Internal Back Turning |
||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||||

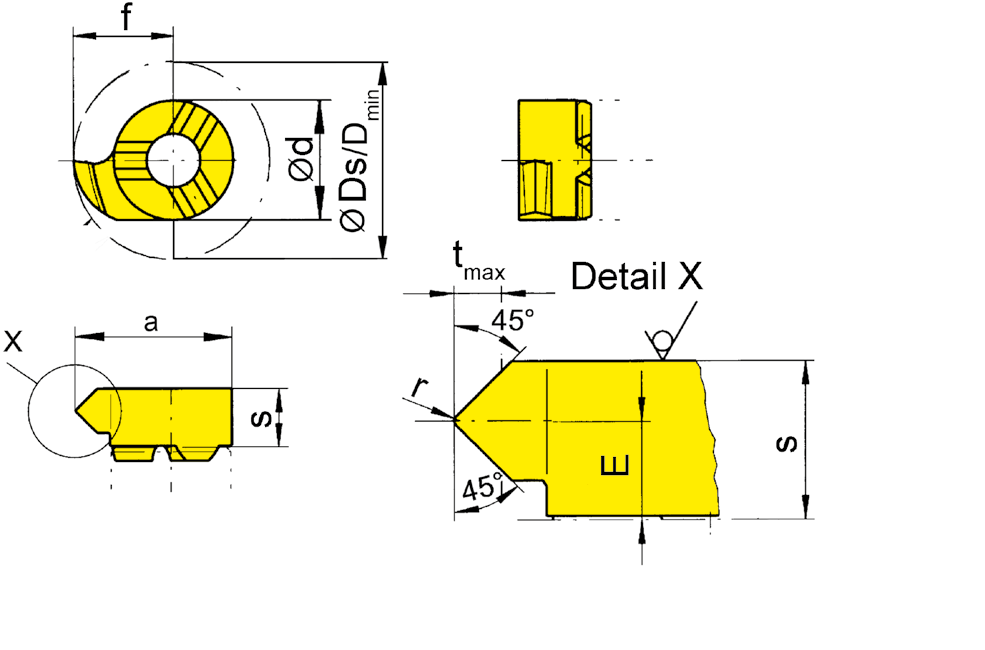

| Part number | E | f | Ds | r | d | s | a | Dmin | α | tmax | Z | HIS | aaa | EG55 | TA45 | TI25 | TN35 |
| R108.4545.02 | 1.8 | 4.65 | 9.3 | 0.2 | 6 | 3.6 | 7.65 | 7.8 | 45° | 1.4 | 1 | 108060R | ▲ | ▲ | ▲ | ▲ | |
| L108.4545.02 | 1.8 | 4.65 | 9.3 | 0.2 | 6 | 3.6 | 7.65 | 7.8 | 45° | 1.4 | 1 | 108060L | ▲ | ⃤ | ⃤ | ▲ | |
| P | |||||||||||||||||
| M | |||||||||||||||||
| K | |||||||||||||||||
| N | |||||||||||||||||
| S | |||||||||||||||||
| H | |||||||||||||||||
We reserve the right to make technical changes.
