| Insert Ø ≥ 8 mm | |||||||||

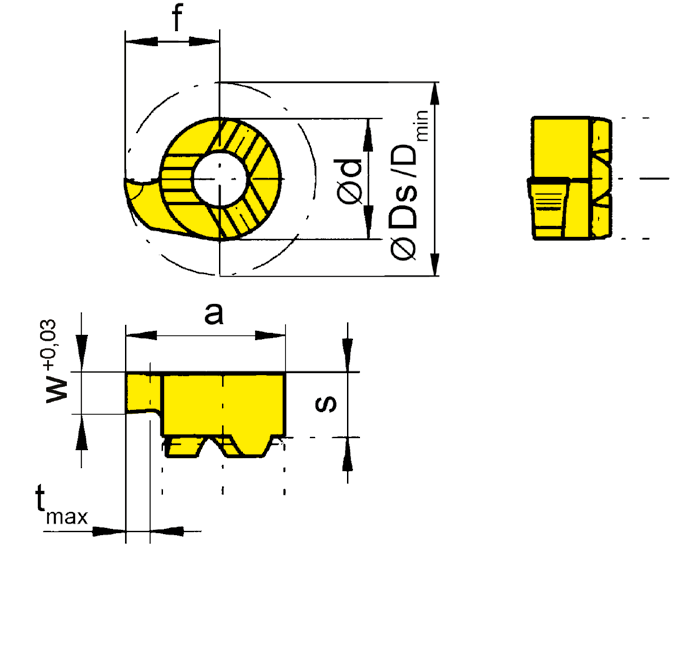

 Internal Grooving |
|||||||||
 R = right hand version shown L = left hand version |
|
| ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||
| Part number | w | s | f | Ds | a | d | tmax | Dmin | Z | HIS | aaa | MG12 | EG55 | TH35 | TN35 |
| R108.0150.00 | 1.5 | 3.2 | 4.8 | 9.6 | 7.8 | 6 | 1 | 8 | 1 | 306060R | ▲ | ▲ | ▲ | ▲ | |
| R108.0200.00 | 2 | 3.2 | 4.8 | 9.6 | 7.8 | 6 | 1 | 8 | 1 | 306060R | ▲ | ▲ | ▲ | ▲ | |
| L108.0150.00 | 1.5 | 3.2 | 4.8 | 9.6 | 7.8 | 6 | 1 | 8 | 1 | 306060L | ▲ | ⃤ | ▲ | ||
| L108.0200.00 | 2 | 3.2 | 4.8 | 9.6 | 7.8 | 6 | 1 | 8 | 1 | 306060L | ▲ | ▲ | ▲ | ||
| P | |||||||||||||||
| M | |||||||||||||||
| K | |||||||||||||||
| N | |||||||||||||||
| S | |||||||||||||||
| H | |||||||||||||||
