| Insert Ø ≥ 8 mm | |||||||||
 Fine Turning |
|||||||||
 R = right hand version shown L = left hand version |
|
| ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||

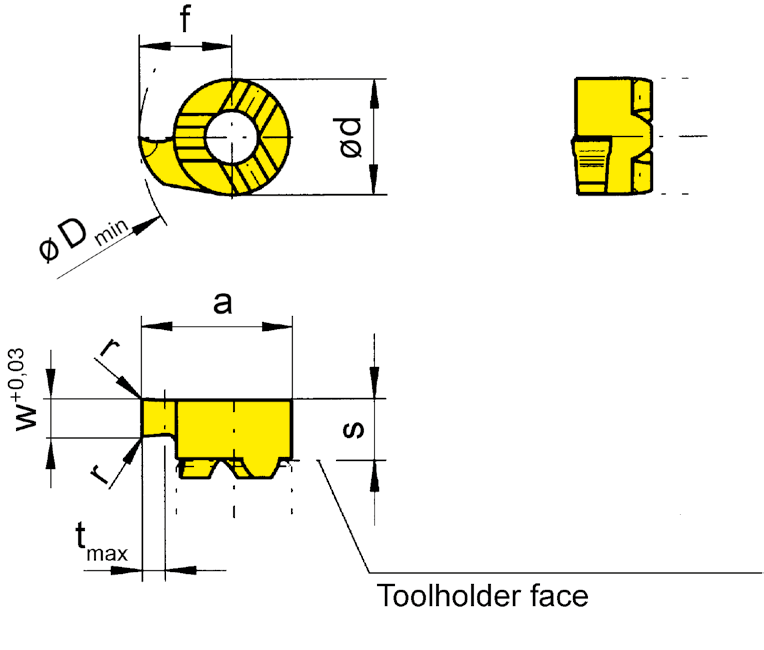

| Part number | w | s | f | a | r | d | tmax | Dmin | HIS | aaa | MG12 | EG55 | TH35 | TI25 | TN35 |
| R108.0150.02 | 1.5 | 3.2 | 4.8 | 7.8 | 0.2 | 6 | 1 | 8 | 306060R | ▲ | ▲ | ▲ | ▲ | ▲ | |
| L108.0150.02 | 1.5 | 3.2 | 4.8 | 7.8 | 0.2 | 6 | 1 | 8 | 306060L | ▲ | ▲ | ▲ | ⃤ | ▲ | |
| P | |||||||||||||||
| M | |||||||||||||||
| K | |||||||||||||||
| N | |||||||||||||||
| S | |||||||||||||||
| H | |||||||||||||||
We reserve the right to make technical changes.
