| Insert Ø ≥ 8 mm | |||||||||
 Internal Thread |
 Geometry GM - Threading |
 Full Profile Thread |
 Metric ISO Thread |
||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||

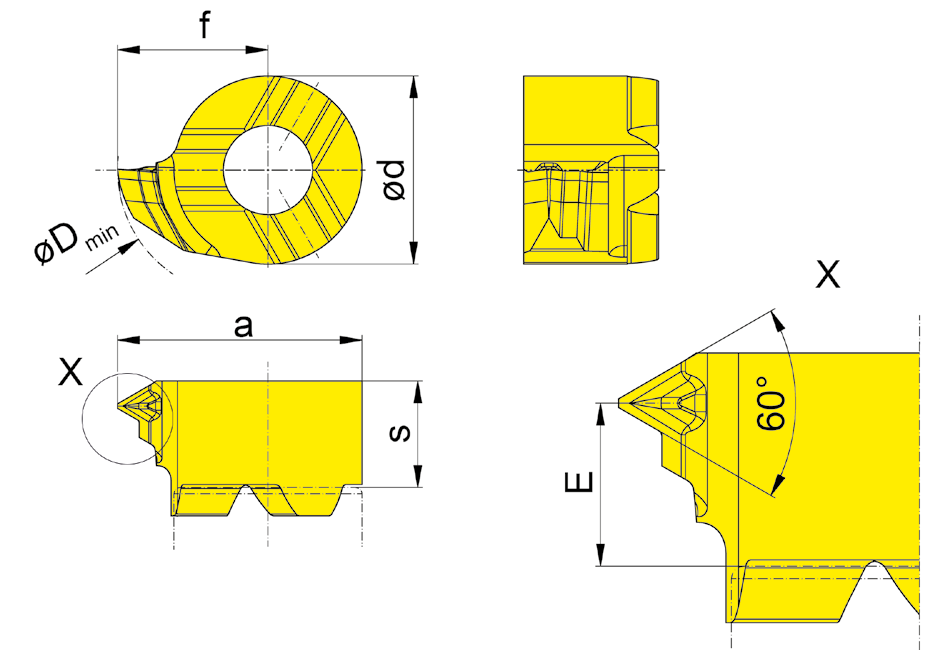

| Part number | P | E | f | a | d | s | Dmin | HIS | aaa | EG55 | |
| RS108.0305.GM2 | 0.5 | 2.6 | 4.8 | 7.8 | 6 | 3.4 | 8 | 108060R | ▲ | ||
| RS108.0510.GM2 | 1 | 2.6 | 4.8 | 7.8 | 6 | 3.4 | 8 | 108060R | ▲ | ||
| RS108.0512.GM2 | 1.25 | 2.6 | 4.8 | 7.8 | 6 | 3.4 | 8 | 108060R | ▲ | ||
| RS108.0815.GM2 | 1.5 | 2.6 | 4.8 | 7.8 | 6 | 3.4 | 8 | 108060R | ▲ | ||
| LS108.0305.GM2 | 0.5 | 2.6 | 4.8 | 7.8 | 6 | 3.4 | 8 | 108060L | ▲ | ||
| LS108.0510.GM2 | 1 | 2.6 | 4.8 | 7.8 | 6 | 3.4 | 8 | 108060L | ▲ | ||
| LS108.0512.GM2 | 1.25 | 2.6 | 4.8 | 7.8 | 6 | 3.4 | 8 | 108060L | ▲ | ||
| LS108.0815.GM2 | 1.5 | 2.6 | 4.8 | 7.8 | 6 | 3.4 | 8 | 108060L | ▲ | ||
| P | |||||||||||
| M | |||||||||||
| K | |||||||||||
| N | |||||||||||
| S | |||||||||||
| H | |||||||||||
We reserve the right to make technical changes.
