Mini 108 |
 R/L108.0810.45 |
 R/L108.0205/0815.01 |
 R/LS108...GM1 |
 R/LS108...GM2 |
 R108.NP14/NP27.02 |
 R108.PG18/PG20.02 |
| Insert Ø ≥ 8 mm | |||||||||
 Internal Thread |
 Full Profile Thread |
 National Pipe Thread |
|||||||
 |
|
| R = right hand version shown ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||

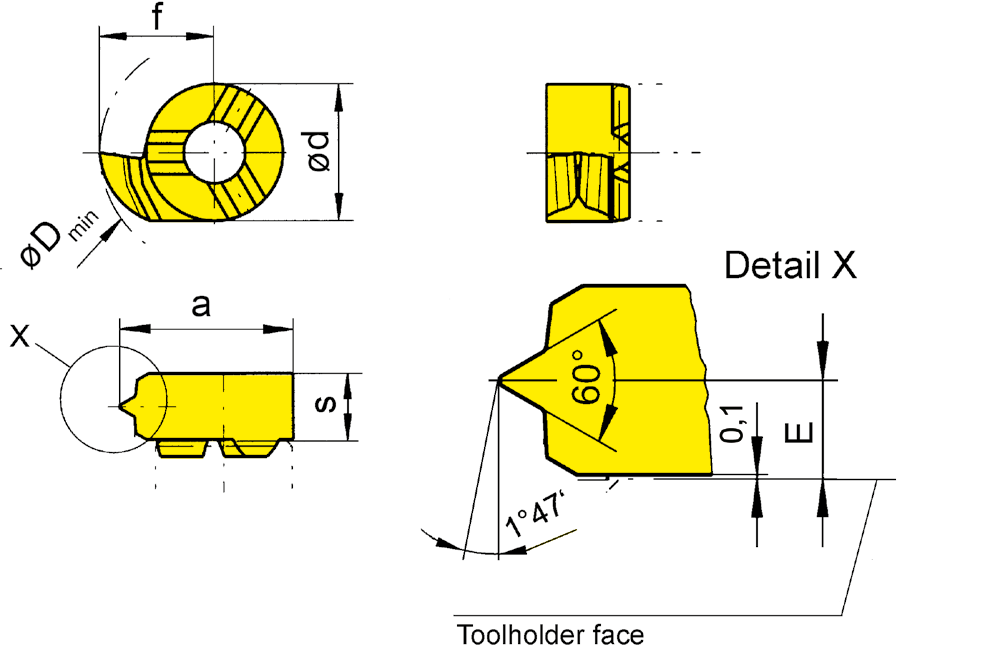

| Part number | TPI | E | f | d | s | Dmin | HIS | aaa | EG55 | TN35 | |||
| R108.NP14.02 | 14 | 1.9 | 4.8 | 6 | 3.6 | 8 | 108060R | ▲ | ▲ | ||||
| R108.NP18.02 | 18 | 1.9 | 4.8 | 6 | 3.6 | 8 | 108060R | ▲ | ▲ | ||||
| R108.NP27.02 | 27 | 1.9 | 4.8 | 6 | 3.6 | 8 | 108060R | ⃤ | ▲ | ||||
| P | |||||||||||||
| M | |||||||||||||
| K | |||||||||||||
| N | |||||||||||||
| S | |||||||||||||
| H | |||||||||||||
We reserve the right to make technical changes.
