Mini 111 |
| Insert Ø ≥ 11 mm | |||||||||
 Circlip Grooves |
 Internal Grooving |
||||||||
 |
 |

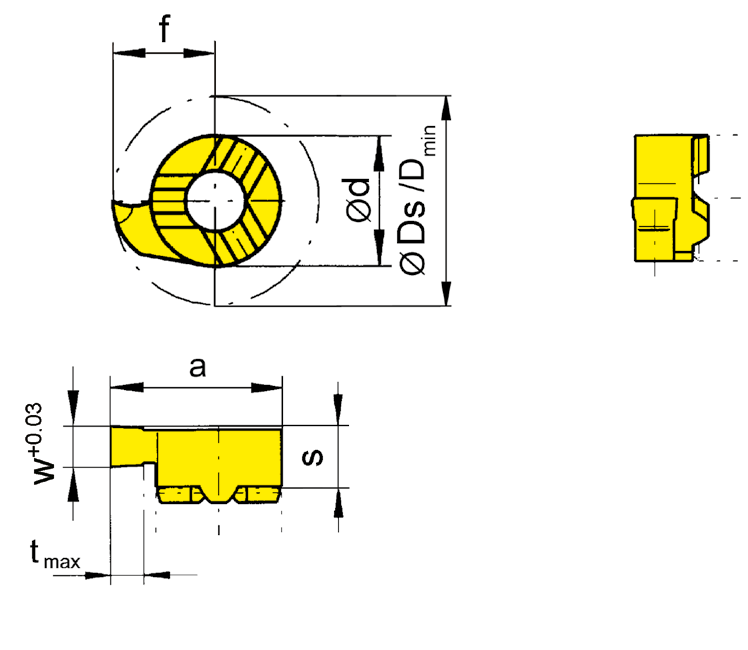

| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||
| Part number | w | Nw | s | f | Ds | d | a | tmax | Dmin | Z | HIS | aaa | EG55 | TH35 | TN35 |
| R111.0110.00 | 1.19 | 1.1 | 3.95 | 6.7 | 13.4 | 8 | 10.7 | 2.3 | 11 | 1 | 111080R | ▲ | ▲ | ▲ | |
| R111.0130.00 | 1.39 | 1.3 | 3.95 | 6.7 | 13.4 | 8 | 10.7 | 2.3 | 11 | 1 | 111080R | ▲ | ▲ | ▲ | |
| R111.0160.00 | 1.69 | 1.6 | 3.95 | 6.7 | 13.4 | 8 | 10.7 | 2.3 | 11 | 1 | 111080R | ▲ | ▲ | ▲ | |
| L111.0110.00 | 1.19 | 1.1 | 3.95 | 6.7 | 13.4 | 8 | 10.7 | 2.3 | 11 | 1 | 111080L | ▲ | ▲ | ▲ | |
| L111.0130.00 | 1.39 | 1.3 | 3.95 | 6.7 | 13.4 | 8 | 10.7 | 2.3 | 11 | 1 | 111080L | ⃤ | ▲ | ▲ | |
| L111.0160.00 | 1.69 | 1.6 | 3.95 | 6.7 | 13.4 | 8 | 10.7 | 2.3 | 11 | 1 | 111080L | ▲ | ▲ | ▲ | |
Widths for circlip grooves DIN 471/472 |
P | ||||||||||||||
| M | |||||||||||||||
| K | |||||||||||||||
| N | |||||||||||||||
| S | |||||||||||||||
| H | |||||||||||||||
We reserve the right to make technical changes.
