Supermini 105 |
 R/L105.810/0830...1.8/2.8 |
 R/L105.810/0830...1.9 |
R/L105.8V10/8V30...1.8/2.8 |
 R/L105.8V10/8V30...1.9 |
| Insert Ø ≥ 8 mm | |||||||||
 Face Grooving |
 Axial Grooving with Collar |
 Internal Coolant |
|||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||

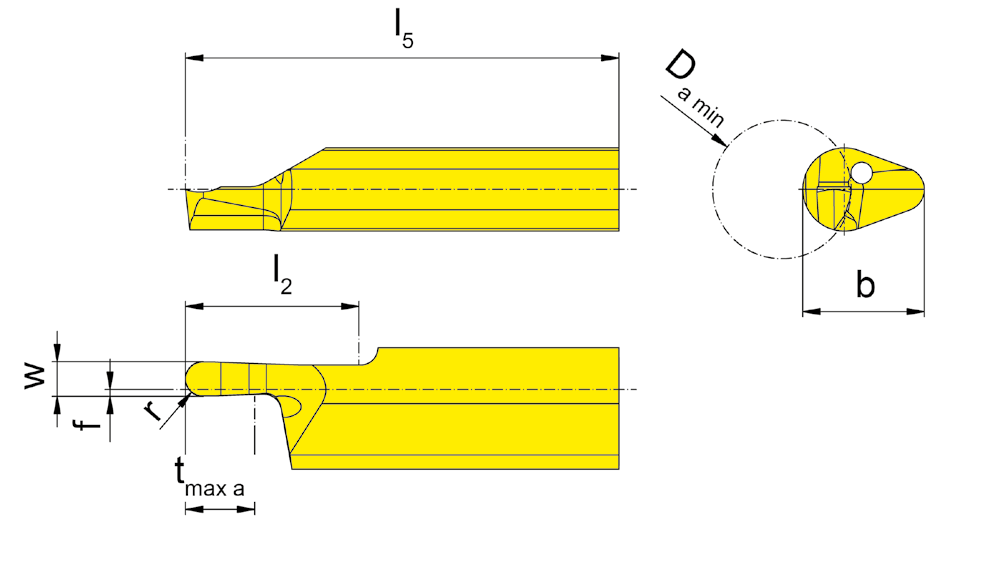

| Part number | w | r | f | b | l2 | l5 | tmax a | Da min | HIS | aaa | EG35 | |
| R105.8V10.1.9 | 1 | 0.5 | 0.4 | 7 | 10 | 25 | 2 | 8 | 105125 | ▲ | ||
| R105.8V16.1.9 | 1.6 | 0.8 | 0.4 | 7 | 10 | 25 | 3 | 8 | 105125 | ▲ | ||
| R105.8V20.1.9 | 2 | 1 | 0.4 | 7 | 10 | 25 | 4 | 8 | 105125 | ▲ | ||
| R105.8V25.1.9 | 2.5 | 1.25 | 0.4 | 7 | 10 | 25 | 5 | 8 | 105125 | ▲ | ||
| R105.8V30.1.9 | 3 | 1.5 | 1 | 7 | 10 | 25 | 6 | 8 | 105125 | ▲ | ||
| L105.8V10.1.9 | 1 | 0.5 | 0.4 | 7 | 10 | 25 | 2 | 8 | 105125 | ▲ | ||
| L105.8V16.1.9 | 1.6 | 0.8 | 0.4 | 7 | 10 | 25 | 3 | 8 | 105125 | ▲ | ||
| L105.8V20.1.9 | 2 | 1 | 0.4 | 7 | 10 | 25 | 4 | 8 | 105125 | ▲ | ||
| L105.8V25.1.9 | 2.5 | 1.25 | 0.4 | 7 | 10 | 25 | 5 | 8 | 105125 | ▲ | ||
| L105.8V30.1.9 | 3 | 1.5 | 1 | 7 | 10 | 25 | 6 | 8 | 105125 | ▲ | ||
| P | ||||||||||||
| M | ||||||||||||
| K | ||||||||||||
| N | ||||||||||||
| S | ||||||||||||
| H | ||||||||||||
We reserve the right to make technical changes.
