Mini 114 |
| B114 Toolholder | |||||||||
 Internal Grooving |
 Face Grooving |
 Internal Boring |
 Internal Coolant |
||||||

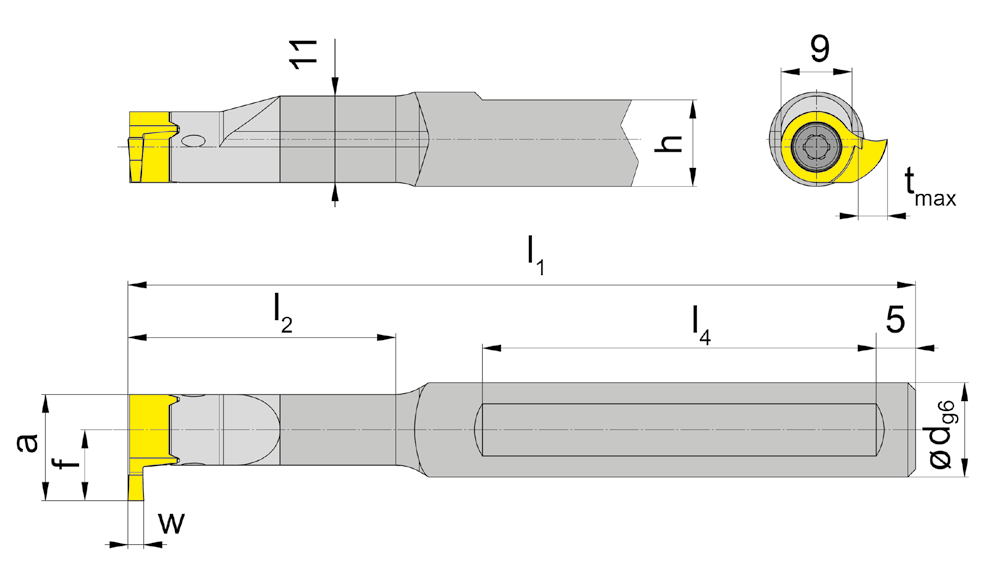

 Picture = right hand cutting version |
 |
| Part number | d | l1 | l2 | h | l4 | HWS |
| B114.0012.00 | 12 | 75 | 19.5 | 11 | 40 | 114090R • 114090L |
| B114.0012.01 | 12 | 100 | 34 | 11 | 50 | 114090R • 114090L |
| B114.0012.02 | 12 | 110 | 45 | 11 | 50 | 114090R • 114090L |
| B114.0012.03 | 12 | 130 | 64 | 11 | 50 | 114090R • 114090L |
| B114.0016.00 | 16 | 80 | 19.5 | 15 | 40 | 114090R • 114090L |
| B114.0016.01 | 16 | 100 | 34 | 15 | 50 | 114090R • 114090L |
| B114.0016.02 | 16 | 110 | 45 | 15 | 50 | 114090R • 114090L |
| B114.0016.03 | 16 | 130 | 64 | 15 | 50 | 114090R • 114090L |
w, a, tmax and f see inserts |
||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B114... | 4.12T15EP | T15PQ |
We reserve the right to make technical changes.
