Mini 114 |
| BA114 Toolholder | |||||||||
 Face Grooving |
 Internal Coolant |
||||||||

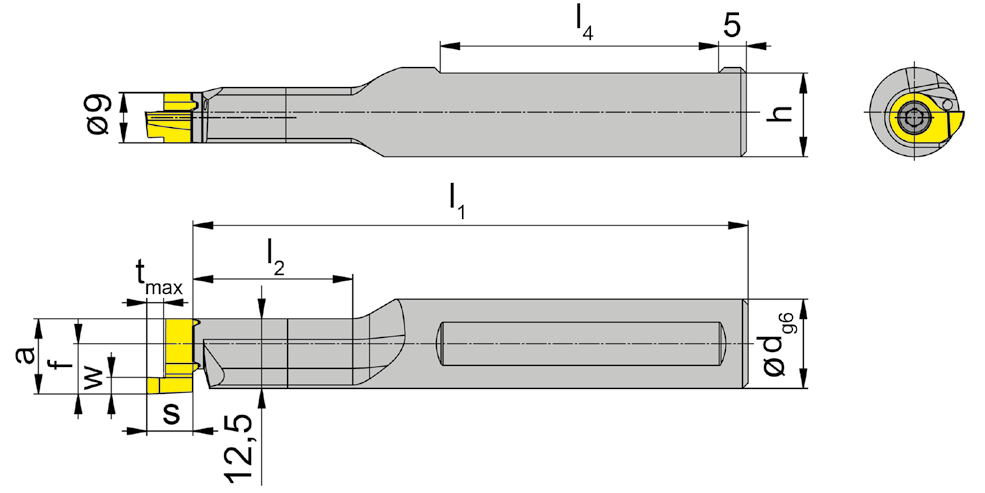

 Picture = right hand cutting version |
 |
| Part number | d | l1 | l2 | h | l4 | HWS |
| RBA114.0016.01 | 16 | 99.7 | 28.7 | 15 | 50 | 114090R • 114090L |
| RBA114.0016.02 | 16 | 109.7 | 39.7 | 15 | 50 | 114090R • 114090L |
| LBA114.0016.01 | 16 | 99.7 | 28.7 | 15 | 50 | 114090R • 114090L |
| LBA114.0016.02 | 16 | 109.7 | 39.7 | 15 | 50 | 114090R • 114090L |
w, a, s, tmax and f see inserts |
||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LBA114... | 4.12T15EP | T15PQ |
We reserve the right to make technical changes.
