Mini 114 |
| HC114 Toolholder | |||||||||
 Face Grooving |
 External Grooving |
||||||||

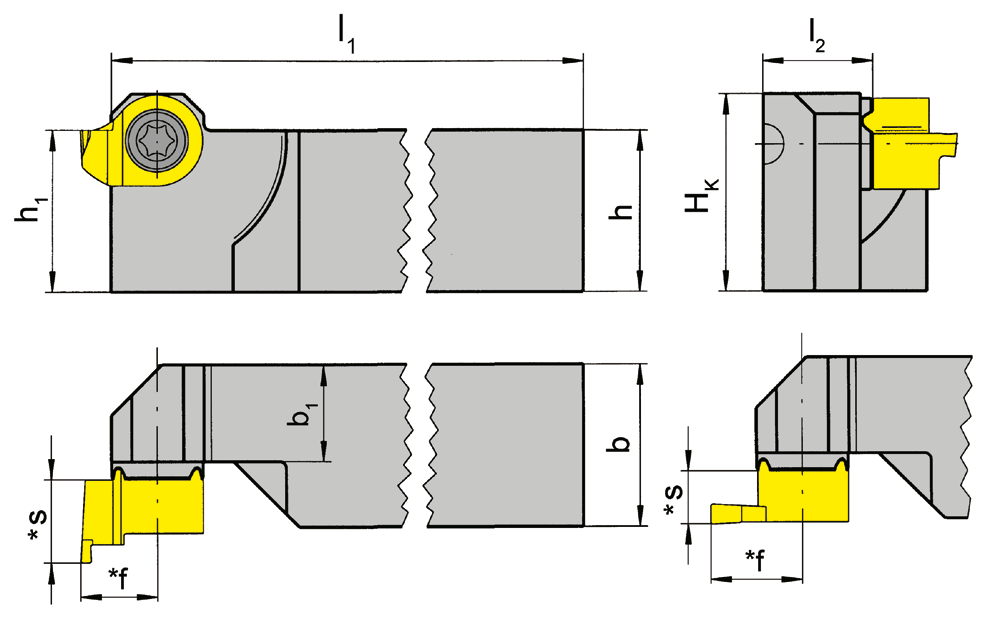

 R = right hand version shown L = left hand version |
 |
| Part number | h | b | l1 | l2 | h1 | b1 | Hk | HWS |
| RHC114.1212.01 | 12 | 12 | 122 | 11.2 | 12 | 9.5 | 15.6 | 114090R • 114090L |
| RHC114.1616.01 | 16 | 16 | 122 | 11.2 | 16 | 9.5 | 19.6 | 114090R • 114090L |
| RHC114.2020.01 | 20 | 20 | 122 | 15.2 | 20 | 13.5 | 23.6 | 114090R • 114090L |
| RHC114.2525.01 | 25 | 25 | 147 | 20.2 | 25 | 18.5 | 28.6 | 114090R • 114090L |
| LHC114.1212.01 | 12 | 12 | 122 | 11.2 | 12 | 9.5 | 15.6 | 114090R • 114090L |
| LHC114.1616.01 | 16 | 16 | 122 | 11.2 | 16 | 9.5 | 19.6 | 114090R • 114090L |
| LHC114.2020.01 | 20 | 20 | 122 | 15.2 | 20 | 13.5 | 23.6 | 114090R • 114090L |
| LHC114.2525.01 | 25 | 25 | 147 | 20.2 | 25 | 18.5 | 28.6 | 114090R • 114090L |
* see inserts |
||||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| R/LHC114... | 4.12T15EP | T15PQ |
