Mini 114 |
 R/L114.1890.02 |
 R/LS114.1890.R2/R4 |
 R/L114.3090.02 |
 R/L114.3387.02/04 |
 R/L114.4787/4710.02/04 |
| Insert Ø ≥ 13.8 mm | |||||||||

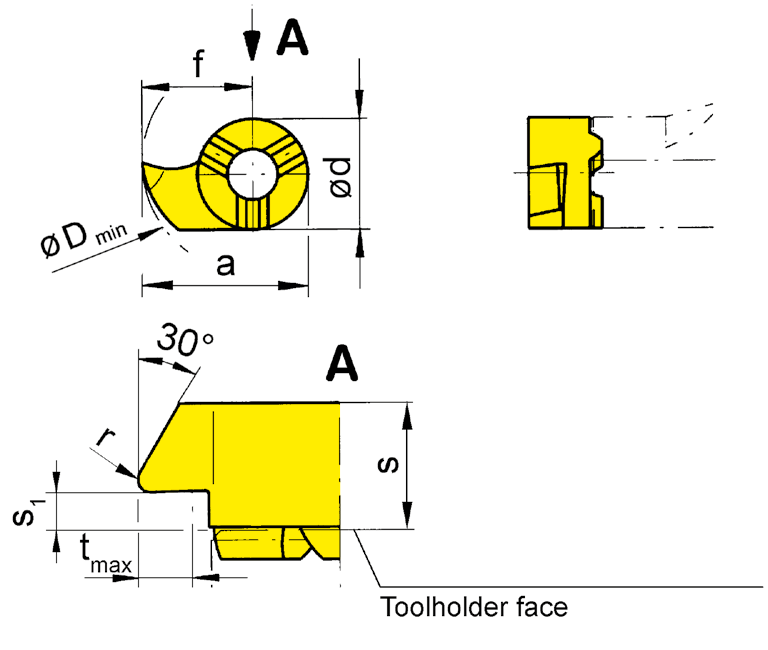

 Internal Back Turning |
|||||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||||
| Part number | s | f | r | s1 | d | tmax | Dmin | HIS | aaa | EG55 | TH35 | TN35 | ||
| R114.3090.02 | 5.5 | 8.7 | 0.2 | 2.4 | 9 | 3.5 | 13.8 | 114090R | ▲ | ▲ | ▲ | |||
| L114.3090.02 | 5.5 | 8.7 | 0.2 | 2.4 | 9 | 3.5 | 13.8 | 114090L | ▲ | ▲ | ▲ | |||
| P | ||||||||||||||
| M | ||||||||||||||
| K | ||||||||||||||
| N | ||||||||||||||
| S | ||||||||||||||
| H | ||||||||||||||
We reserve the right to make technical changes.
