Mini 114 |
 R/L114.1890.02 |
 R/LS114.1890.R2/R4 |
 R/L114.3090.02 |
 R/L114.3387.02/04 |
 R/L114.4787/4710.02/04 |
| Insert Ø ≥ 13.8 mm | |||||||||
 Boring and Profiling |

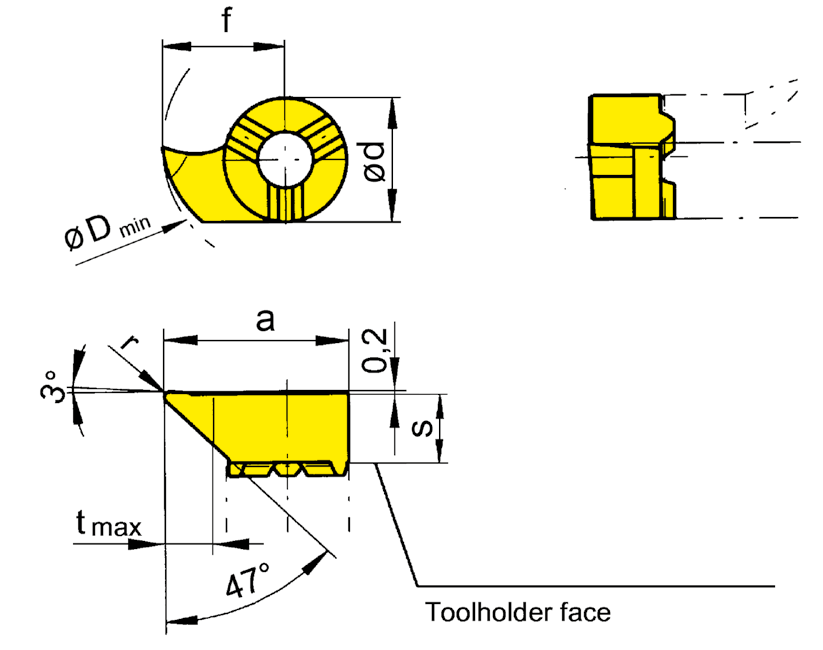

 Internal Boring and Grooving Chamfer |
||||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||||||
| Part number | s | f | a | r | d | tmax | Dmin | HIS | aaa | EG55 | TH35 | TN35 | ||||
| R114.4787.02 | 5.3 | 8.7 | 13.2 | 0.2 | 9 | 3 | 13.8 | 114090R | ▲ | ▲ | ▲ | |||||
| R114.4787.04 | 5.3 | 8.7 | 13.2 | 0.4 | 9 | 3 | 13.8 | 114090R | ▲ | ▲ | ||||||
| R114.4710.02 | 5.3 | 11 | 15.5 | 0.2 | 9 | 3 | 16 | 114090R | ▲ | ▲ | ▲ | |||||
| L114.4787.02 | 5.3 | 8.7 | 13.2 | 0.2 | 9 | 3 | 13.8 | 114090L | ▲ | ▲ | ▲ | |||||
| L114.4787.04 | 5.3 | 8.7 | 13.2 | 0.4 | 9 | 3 | 13.8 | 114090L | ▲ | ▲ | ||||||
| L114.4710.02 | 5.3 | 11 | 15.5 | 0.2 | 9 | 3 | 16 | 114090L | ⃤ | ▲ | ▲ | |||||
| P | ||||||||||||||||
| M | ||||||||||||||||
| K | ||||||||||||||||
| N | ||||||||||||||||
| S | ||||||||||||||||
| H | ||||||||||||||||
We reserve the right to make technical changes.
