Mini 114 |
| Insert Ø ≥ 14 mm | |||||||||
 Circlip Grooves |
 Internal Grooving |
||||||||
 |
 |

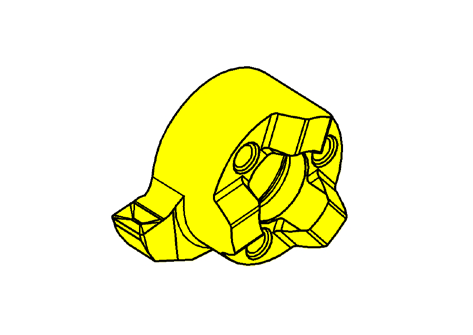

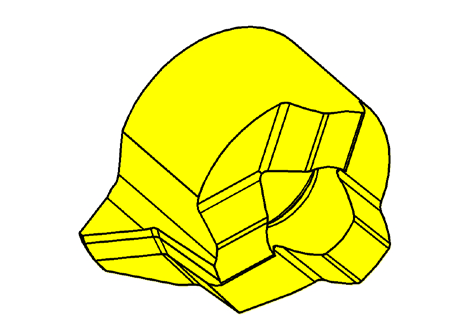

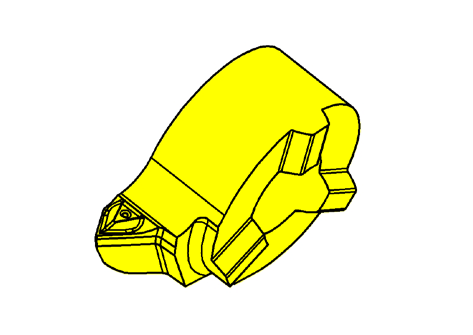

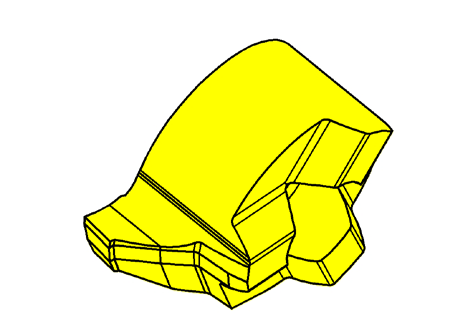

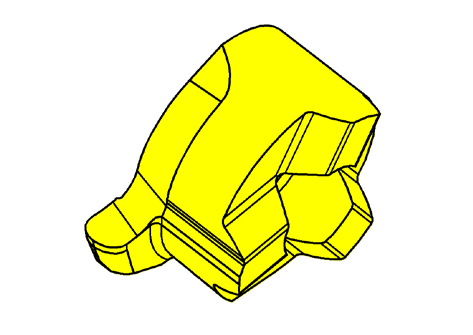

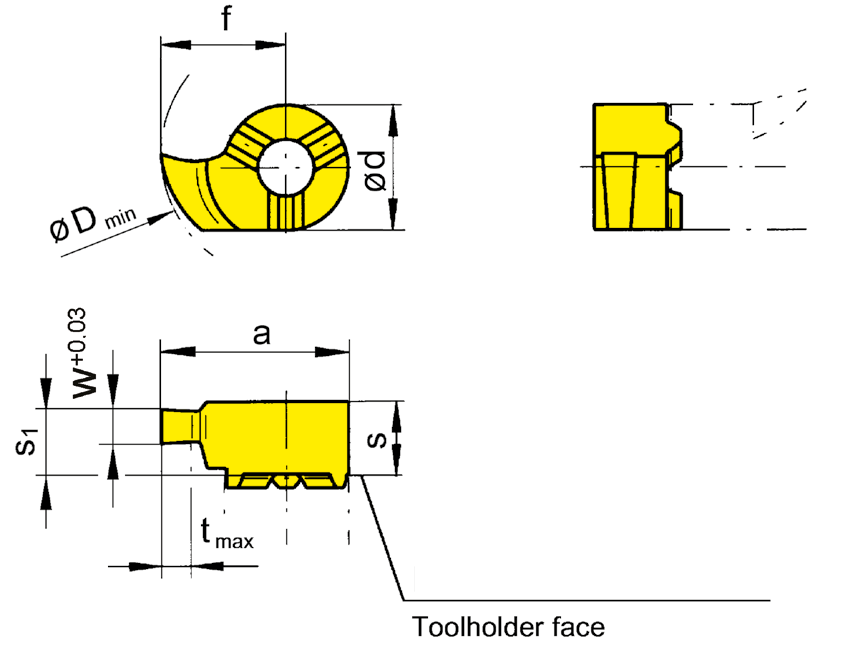

| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||
| Part number | w | Nw | s | f | a | s1 | d | tmax | Dmin | HIS | aaa | EG55 | TN35 |
| R114.0070.00 | 0.74 | 0.7 | 5.5 | 9 | 13.5 | 5.3 | 9 | 1.2 | 14 | 114090R | ▲ | ▲ | |
| R114.0080.00 | 0.84 | 0.8 | 5.5 | 9 | 13.5 | 5.3 | 9 | 1.3 | 14 | 114090R | ▲ | ▲ | |
| R114.0090.00 | 0.94 | 0.9 | 5.5 | 9 | 13.5 | 5.3 | 9 | 1.5 | 14 | 114090R | ▲ | ▲ | |
| L114.0070.00 | 0.74 | 0.7 | 5.5 | 9 | 13.5 | 5.3 | 9 | 1.2 | 14 | 114090L | ▲ | ||
| L114.0080.00 | 0.84 | 0.8 | 5.5 | 9 | 13.5 | 5.3 | 9 | 1.3 | 14 | 114090L | ⃤ | ▲ | |
| L114.0090.00 | 0.94 | 0.9 | 5.5 | 9 | 13.5 | 5.3 | 9 | 1.5 | 14 | 114090L | ▲ | ▲ | |
not face cutting, limited depth of cut Widths for circlip grooves DIN 471/472 |
P | ||||||||||||
| M | |||||||||||||
| K | |||||||||||||
| N | |||||||||||||
| S | |||||||||||||
| H | |||||||||||||
