Mini 114 |
| Insert Ø ≥ 14 mm | |||||||||
 Circlip Grooves |
 Internal Grooving |
||||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||

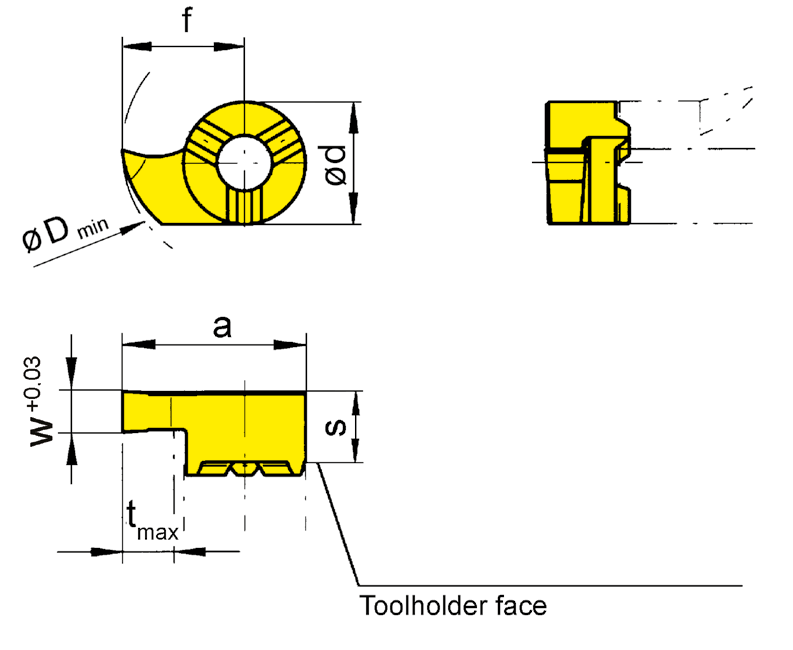

| Part number | w | Nw | s | f | a | d | tmax | Dmin | HIS | aaa | EG55 | TH35 | TN35 |
| R114.0110.00 | 1.19 | 1.1 | 5.3 | 9 | 13.5 | 9 | 4 | 14 | 114090R | ▲ | ▲ | ▲ | |
| R114.0130.00 | 1.39 | 1.3 | 5.3 | 9 | 13.5 | 9 | 4 | 14 | 114090R | ▲ | ▲ | ▲ | |
| R114.0160.00 | 1.69 | 1.6 | 5.3 | 9 | 13.5 | 9 | 4 | 14 | 114090R | ▲ | ▲ | ▲ | |
| L114.0110.00 | 1.19 | 1.1 | 5.3 | 9 | 13.5 | 9 | 4 | 14 | 114090L | ▲ | ▲ | ▲ | |
| L114.0130.00 | 1.39 | 1.3 | 5.3 | 9 | 13.5 | 9 | 4 | 14 | 114090L | ▲ | ▲ | ▲ | |
| L114.0160.00 | 1.69 | 1.6 | 5.3 | 9 | 13.5 | 9 | 4 | 14 | 114090L | ▲ | ▲ | ||
Widths for circlip grooves DIN 471/472 |
P | ||||||||||||
| M | |||||||||||||
| K | |||||||||||||
| N | |||||||||||||
| S | |||||||||||||
| H | |||||||||||||
We reserve the right to make technical changes.
