Mini S114 |
| Insert Ø ≥ 14 mm | |||||||||
 Internal Thread |

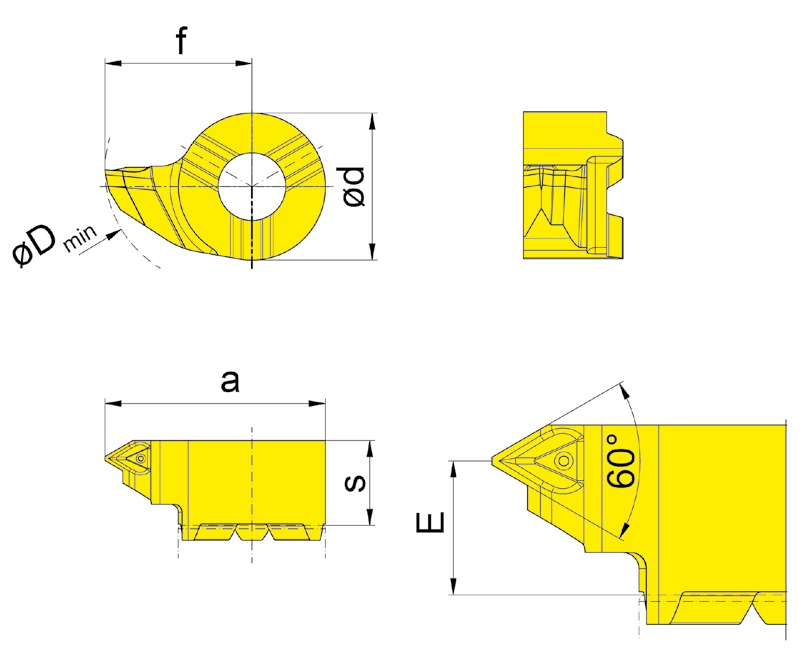

 Geometry GM - Threading |
 Full Profile Thread |
 Metric ISO Thread |
||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||
| Part number | P | E | f | a | d | s | Dmin | HIS | aaa | EG55 | |
| RS114.0510.GM2 | 1 | 4.1 | 9 | 13.5 | 9 | 5.2 | 14 | 114090R | ▲ | ||
| RS114.0815.GM2 | 1.5 | 4.1 | 9 | 13.5 | 9 | 5.2 | 14 | 114090R | ▲ | ||
| RS114.1020.GM2 | 2 | 4.1 | 9 | 13.5 | 9 | 5.2 | 14 | 114090R | ▲ | ||
| RS114.1325.GM2 | 2.5 | 4.1 | 9 | 13.5 | 9 | 5.2 | 14 | 114090R | ▲ | ||
| LS114.0510.GM2 | 1 | 4.1 | 9 | 13.5 | 9 | 5.2 | 14 | 114090L | ▲ | ||
| LS114.0815.GM2 | 1.5 | 4.1 | 9 | 13.5 | 9 | 5.2 | 14 | 114090L | ▲ | ||
| LS114.1020.GM2 | 2 | 4.1 | 9 | 13.5 | 9 | 5.2 | 14 | 114090L | ▲ | ||
| LS114.1325.GM2 | 2.5 | 4.1 | 9 | 13.5 | 9 | 5.2 | 14 | 114090L | ▲ | ||
| P | |||||||||||
| M | |||||||||||
| K | |||||||||||
| N | |||||||||||
| S | |||||||||||
| H | |||||||||||
We reserve the right to make technical changes.
