Mini 114 |

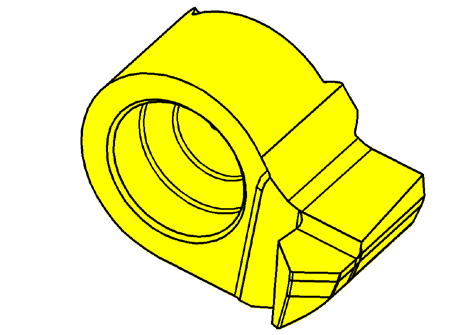

 114.1205/1230.00 |

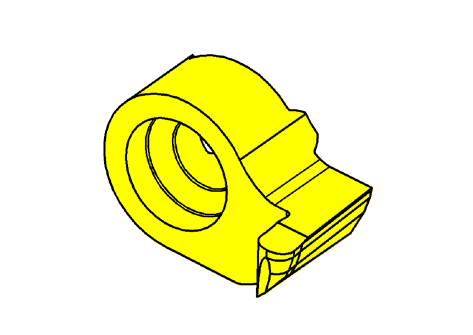

 114.1220/1230.10/15 |

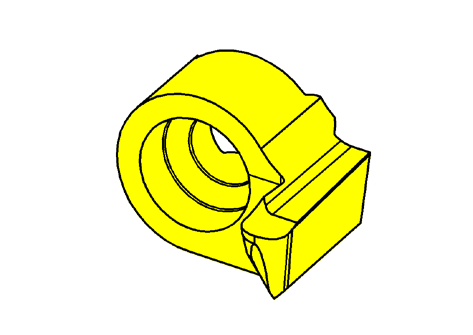

 114.1410/1430.00 |

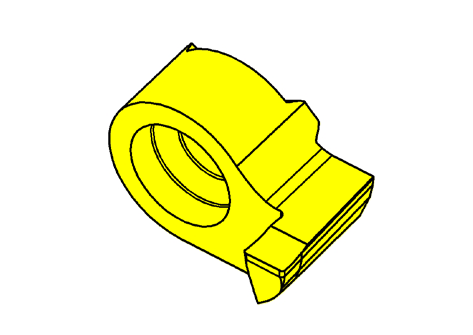

 114.1410/1430.05/15 |
 114.4545.14 |
| Insert Ø ≥ 12 mm | |||||||||
 Face Grooving |
|||||||||
 |
|

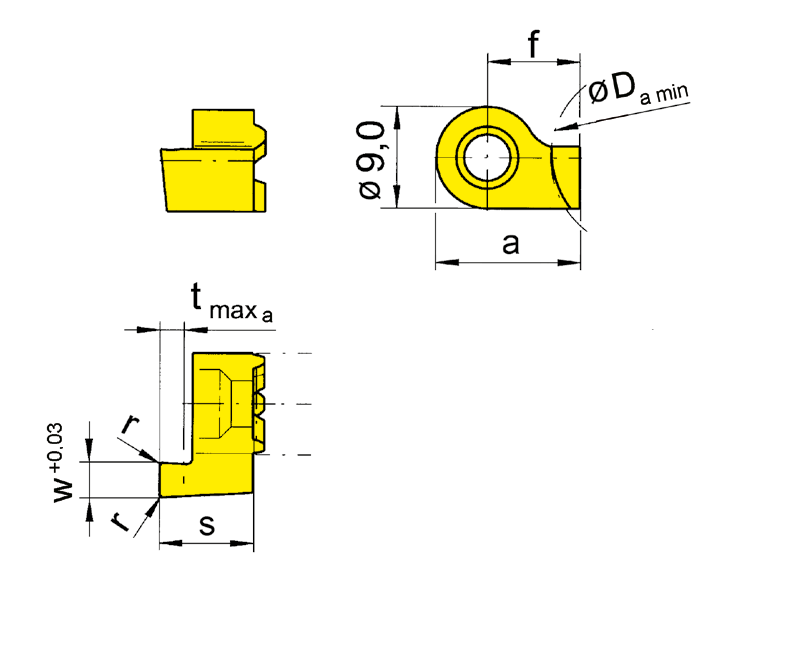

| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||
| Part number | w | s | f | a | r | tmax a | Da min | HIS | aaa | EG55 | TN35 |
| R114.1205.00 | 0.5 | 8.3 | 7.5 | 12 | - | 1 | 12 | 114090R | ⃤ | ▲ | |
| R114.1210.00 | 1 | 8.3 | 7.5 | 12 | - | 1.5 | 12 | 114090R | ▲ | ▲ | |
| R114.1215.00 | 1.5 | 8.3 | 7.5 | 12 | 0.2 | 2.5 | 12 | 114090R | ▲ | ▲ | |
| R114.1220.00 | 2 | 8.3 | 7.5 | 12 | 0.2 | 3 | 12 | 114090R | ▲ | ▲ | |
| R114.1225.00 | 2.5 | 8.3 | 7.5 | 12 | 0.2 | 3 | 12 | 114090R | ▲ | ▲ | |
| R114.1230.00 | 3 | 8.3 | 7.5 | 12 | 0.2 | 3 | 12 | 114090R | ▲ | ▲ | |
| R114.1220.5.00 | 2 | 10.8 | 7.5 | 12 | 0.2 | 5 | 12 | 114090R | ▲ | ▲ | |
| R114.1225.5.00 | 2.5 | 10.8 | 7.5 | 12 | 0.2 | 5 | 12 | 114090R | ▲ | ▲ | |
| R114.1230.6.00 | 3 | 11.8 | 7.5 | 12 | 0.2 | 6 | 12 | 114090R | ▲ | ▲ | |
| L114.1205.00 | 0.5 | 8.3 | 7.5 | 12 | - | 1 | 12 | 114090L | ⃤ | ▲ | |
| L114.1210.00 | 1 | 8.3 | 7.5 | 12 | - | 1.5 | 12 | 114090L | ▲ | ▲ | |
| L114.1215.00 | 1.5 | 8.3 | 7.5 | 12 | 0.2 | 2.5 | 12 | 114090L | ▲ | ▲ | |
| L114.1220.00 | 2 | 8.3 | 7.5 | 12 | 0.2 | 3 | 12 | 114090L | ▲ | ▲ | |
| L114.1225.00 | 2.5 | 8.3 | 7.5 | 12 | 0.2 | 3 | 12 | 114090L | ▲ | ▲ | |
| L114.1230.00 | 3 | 8.3 | 7.5 | 12 | 0.2 | 3 | 12 | 114090L | ▲ | ▲ | |
| L114.1220.5.00 | 2 | 10.8 | 7.5 | 12 | 0.2 | 5 | 12 | 114090L | ▲ | ▲ | |
| L114.1225.5.00 | 2.5 | 10.8 | 7.5 | 12 | 0.2 | 5 | 12 | 114090L | ▲ | ▲ | |
| L114.1230.6.00 | 3 | 11.8 | 7.5 | 12 | 0.2 | 6 | 12 | 114090L | ▲ | ▲ | |
Machining BEHIND centre line R = rotation anti-clockwise! Using the face grooving insert type 114 on toolholder type B114 the size l1 and l2 will be enlarged by 3.0 / 5.5 or 6.5 mm. |
P | ||||||||||
| M | |||||||||||
| K | |||||||||||
| N | |||||||||||
| S | |||||||||||
| H | |||||||||||
