Mini 114 |
 114.1205/1230.00 |
 114.1220/1230.10/15 |
 114.1410/1430.00 |
 114.1410/1430.05/15 |
 114.4545.14 |
| Insert Ø ≥ 12 mm | |||||||||
 Face Grooving |
|||||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||
| Part number | w | s | f | a | r | tmax a | Da min | HIS | aaa | EG55 | TN35 |
| R114.1220.5.10 | 2 | 10.8 | 7.5 | 12 | 1 | 5 | 12 | 114090R | ▲ | ▲ | |
| R114.1225.5.12 | 2.5 | 10.8 | 7.5 | 12 | 1.25 | 5 | 12 | 114090R | ▲ | ▲ | |
| R114.1230.6.15 | 3 | 11.8 | 7.5 | 12 | 1.5 | 6 | 12 | 114090R | ▲ | ▲ | |
| L114.1220.5.10 | 2 | 10.8 | 7.5 | 12 | 1 | 5 | 12 | 114090L | ▲ | ▲ | |
| L114.1225.5.12 | 2.5 | 10.8 | 7.5 | 12 | 1.25 | 5 | 12 | 114090L | ▲ | ▲ | |
| L114.1230.6.15 | 3 | 11.8 | 7.5 | 12 | 1.5 | 6 | 12 | 114090L | ▲ | ▲ | |

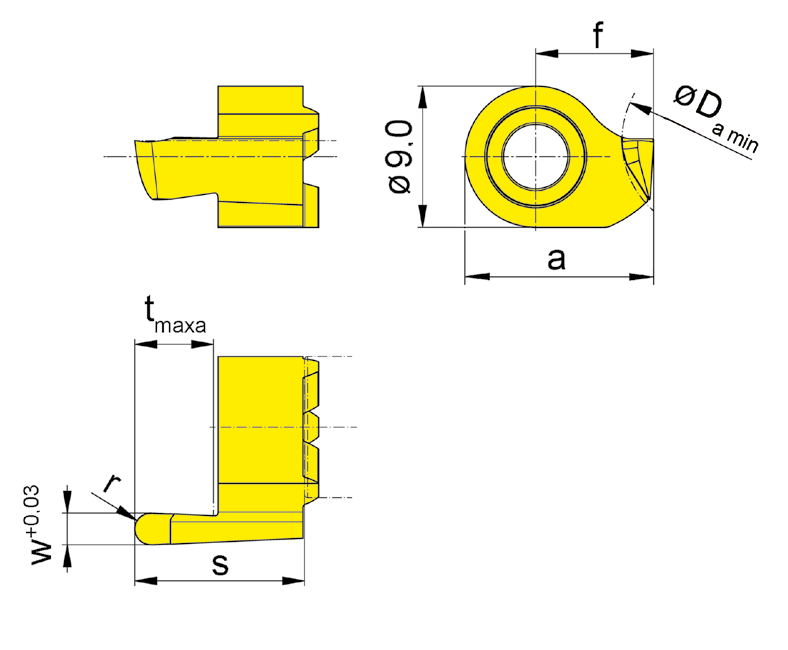

Full radius Machining BEHIND centre line R = rotation anti-clockwise! Using the face grooving insert type 114 on toolholder type B114 the size l1 and l2 will be enlarged by 5.5 mm or 6.5 mm. |
