Mini 116 |
| Insert Ø ≥ 16 mm | |||||||||
 Circlip Grooves |
 Internal Grooving |
||||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||||

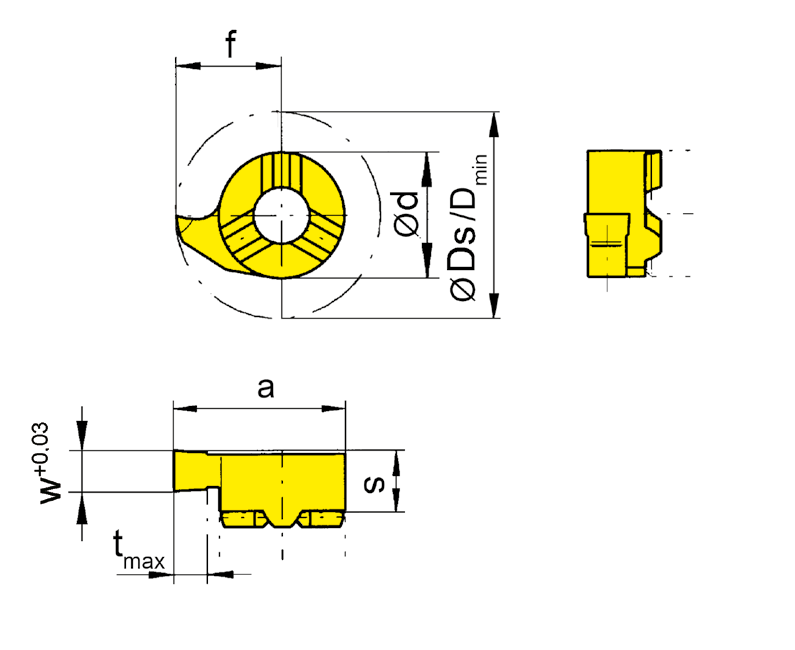

| Part number | w | Nw | s | f | Ds | a | d | tmax | Dmin | Z | HIS | aaa | EG55 | TH35 | TN35 |
| R116.0110.00 | 1.19 | 1.1 | 5.3 | 10.2 | 20.4 | 15.7 | 11 | 4.3 | 16 | 1 | 116110R | ▲ | ▲ | ▲ | |
| R116.0130.00 | 1.39 | 1.3 | 5.3 | 10.2 | 20.4 | 15.7 | 11 | 4.3 | 16 | 1 | 116110R | ▲ | ▲ | ▲ | |
| R116.0160.00 | 1.69 | 1.6 | 5.3 | 10.2 | 20.4 | 15.7 | 11 | 4.3 | 16 | 1 | 116110R | ▲ | ▲ | ▲ | |
| L116.0110.00 | 1.19 | 1.1 | 5.3 | 10.2 | 20.4 | 15.7 | 11 | 4.3 | 16 | 1 | 116110L | ▲ | ▲ | ||
| L116.0130.00 | 1.39 | 1.3 | 5.3 | 10.2 | 20.4 | 15.7 | 11 | 4.3 | 16 | 1 | 116110L | ▲ | ▲ | ▲ | |
| L116.0160.00 | 1.69 | 1.6 | 5.3 | 10.2 | 20.4 | 15.7 | 11 | 4.3 | 16 | 1 | 116110L | ▲ | ▲ | ▲ | |
Widths for circlip grooves DIN 471/472 |
P | ||||||||||||||
| M | |||||||||||||||
| K | |||||||||||||||
| N | |||||||||||||||
| S | |||||||||||||||
| H | |||||||||||||||
We reserve the right to make technical changes.
