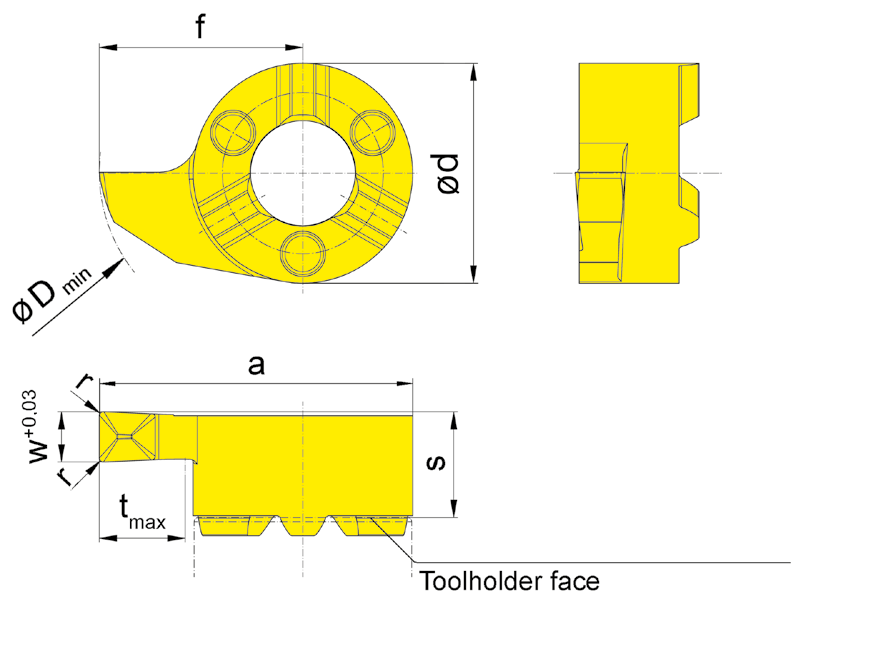

Horn Mini s116 Ø ≥ 16 mm R/LS116.0200/0300.D2

Insert Ø ≥ 16 mm
Geometry D		Internal Grooving

R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades
Part number	w	s	f	a	r	d	t_max	D_min	HIS	aaa	EG55	TH35
RS116.0200.D2	2	5.3	10.2	15.7	0.2	11	4.3	16	116110R		▲	▲
RS116.0250.D2	2.5	5.3	10.2	15.7	0.2	11	4.3	16	116110R		▲	▲
RS116.0300.D2	3	5.3	10.2	15.7	0.2	11	4.3	16	116110R		▲	▲
LS116.0200.D2	2	5.3	10.2	15.7	0.2	11	4.3	16	116110L			▲
LS116.0250.D2	2.5	5.3	10.2	15.7	0.2	11	4.3	16	116110L			▲
LS116.0300.D2	3	5.3	10.2	15.7	0.2	11	4.3	16	116110L		⃤	▲
										P
										M
										K
										N
										S
										H

We reserve the right to make technical changes.
