Mini 116 |
| Insert Ø ≥ 16 mm | |||||||||
 Boring and Profiling |

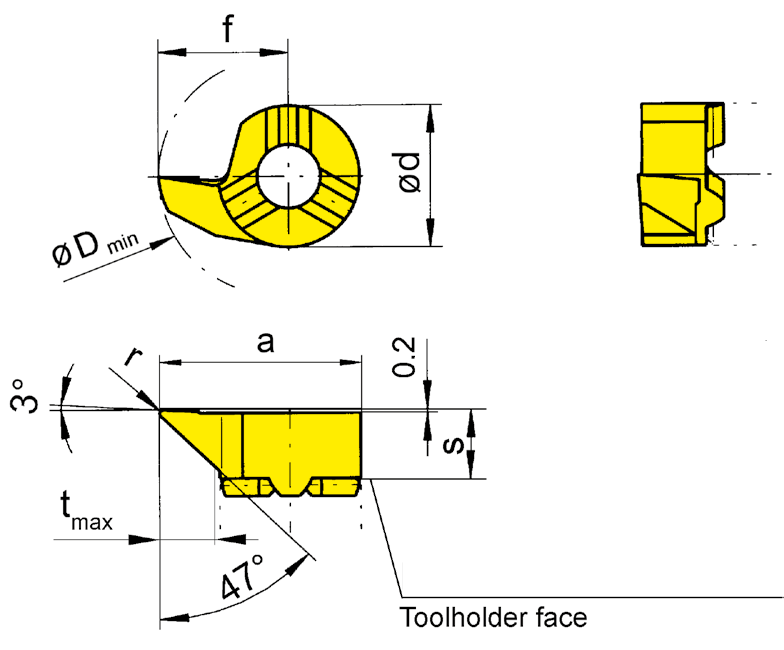

 Internal Boring and Grooving Chamfer |
||||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||
| Part number | s | f | a | r | d | tmax | Dmin | HIS | aaa | EG55 | TH35 | TN35 | |
| R116.4702.02 | 5.3 | 10.2 | 15.7 | 0.2 | 11 | 4.3 | 16 | 116110R | ▲ | ▲ | ▲ | ||
| R116.4702.04 | 5.3 | 10.2 | 15.7 | 0.4 | 11 | 4.3 | 16 | 116110R | ▲ | ▲ | |||
| L116.4702.02 | 5.3 | 10.2 | 15.7 | 0.2 | 11 | 4.3 | 16 | 116110L | ▲ | ▲ | ▲ | ||
| L116.4702.04 | 5.3 | 10.2 | 15.7 | 0.4 | 11 | 4.3 | 16 | 116110L | ▲ | ▲ | |||
| P | |||||||||||||
| M | |||||||||||||
| K | |||||||||||||
| N | |||||||||||||
| S | |||||||||||||
| H | |||||||||||||
We reserve the right to make technical changes.
