Mini 116 |
| Insert Ø ≥ 16 mm | |||||||||
 Internal Pre-grooving and Chamfering |
|||||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||

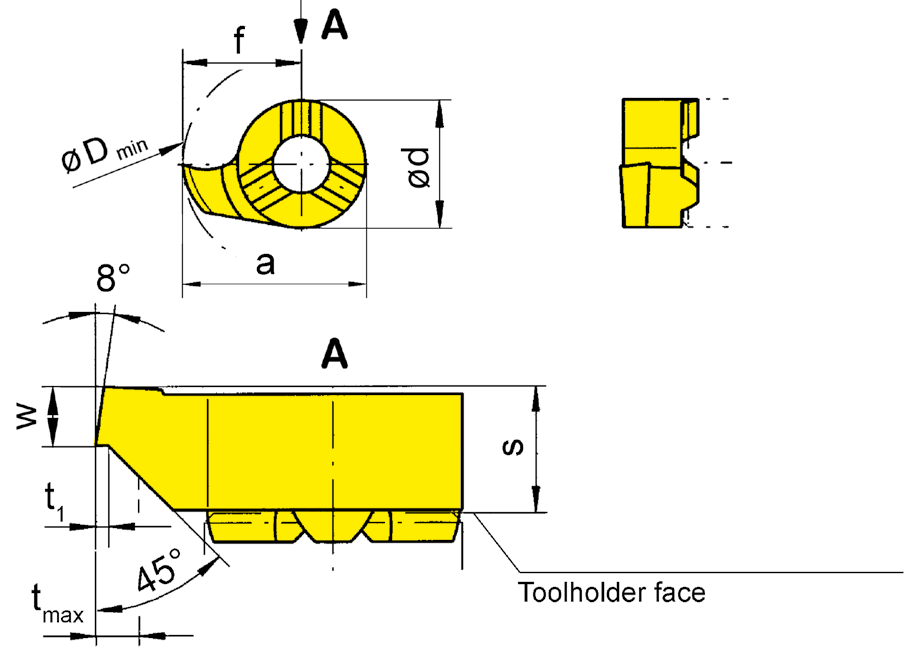

| Part number | w | s | f | a | d | tmax | t1 | Dmin | HIS | aaa | EG55 | TI25 |
| R116.0815.45 | 1.5 | 5.3 | 10.2 | 15.7 | 11 | 1.5 | 0.2 | 16 | 116110R | ▲ | ▲ | |
| L116.0815.45 | 1.5 | 5.3 | 10.2 | 15.7 | 11 | 1.5 | 0.2 | 16 | 116110L | ▲ | ▲ | |
| P | ||||||||||||
| M | ||||||||||||
| K | ||||||||||||
| N | ||||||||||||
| S | ||||||||||||
| H | ||||||||||||
We reserve the right to make technical changes.
