Mini S116 |
| Insert Ø ≥ 16 mm | |||||||||
 Internal Thread |
 Geometry GM - Threading |
 Partial Profile Thread |
 Metric ISO Thread |
||||||
 |
 |
| L = left hand version shown ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||

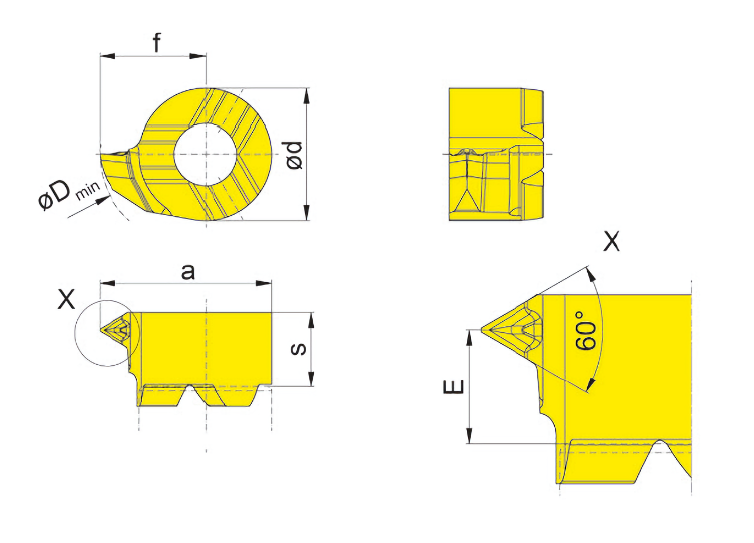

| Part number | P | Pmax | E | f | a | d | s | Dmin | HIS | aaa | EG55 | |
| RS116.0510.GM1 | 1 | 1.25 | 4.1 | 10.2 | 15.7 | 11 | 5.2 | 16 | 116110R | ▲ | ||
| RS116.0815.GM1 | 1.5 | 1.75 | 4.1 | 10.2 | 15.7 | 11 | 5.2 | 16 | 116110R | ▲ | ||
| RS116.1020.GM1 | 2 | 2 | 4.1 | 10.2 | 15.7 | 11 | 5.2 | 16 | 116110R | ▲ | ||
| RS116.1325.GM1 | 2.5 | 2.5 | 4.1 | 10.2 | 15.7 | 11 | 5.2 | 16 | 116110R | ▲ | ||
| LS116.0510.GM1 | 1 | 1.25 | 4.1 | 10.2 | 15.7 | 11 | 5.2 | 16 | 116110L | ▲ | ||
| LS116.0815.GM1 | 1.5 | 1.75 | 4.1 | 10.2 | 15.7 | 11 | 5.2 | 16 | 116110L | ▲ | ||
| LS116.1020.GM1 | 2 | 2 | 4.1 | 10.2 | 15.7 | 11 | 5.2 | 16 | 116110L | ▲ | ||
| LS116.1325.GM1 | 2.5 | 2.5 | 4.1 | 10.2 | 15.7 | 11 | 5.2 | 16 | 116110L | ▲ | ||
| P | ||||||||||||
| M | ||||||||||||
| K | ||||||||||||
| N | ||||||||||||
| S | ||||||||||||
| H | ||||||||||||
We reserve the right to make technical changes.
