Mini 114 |
| Insert Ø ≥ 14 mm | |||||||||
 Internal Grooving with Chamfer |
 Internal Boring and Grooving Chamfer |
 Internal Chamfering |
 Internal Back Turning |
||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||

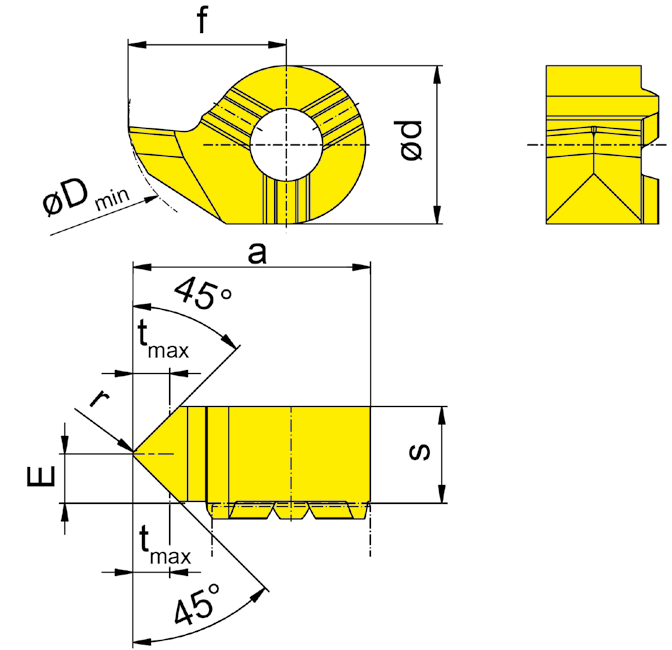

| Part number | E | s | f | a | r | d | tmax | Dmin | HIS | aaa | EG55 |
| R114.4545.02 | 2.8 | 5.5 | 9 | 13.5 | 0.2 | 9 | 2.1 | 14 | 114090R | ▲ | |
| L114.4545.02 | 2.8 | 5.5 | 9 | 13.5 | 0.2 | 9 | 2.1 | 14 | 114090L | ⃤ | |
| P | |||||||||||
| M | |||||||||||
| K | |||||||||||
| N | |||||||||||
| S | |||||||||||
| H | |||||||||||
We reserve the right to make technical changes.
