Mini 114 |
 114.1205/1230.00 |
 114.1220/1230.10/15 |
 114.1410/1430.00 |
 114.1410/1430.05/15 |
 114.4545.14 |
| Insert Ø ≥ 14 mm | |||||||||
 Face Grooving |
 Internal Chamfering |
||||||||
 |
|
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||

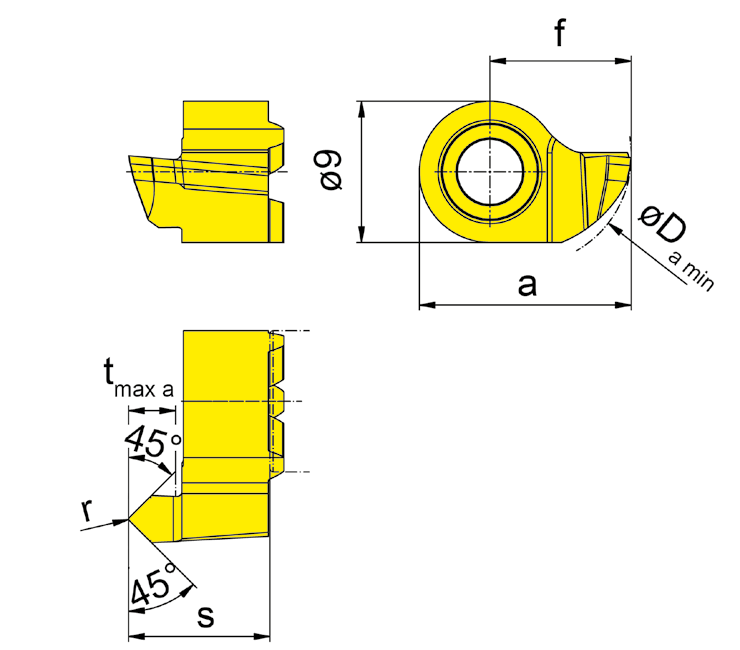

| Part number | s | f | a | r | tmax a | Da min | HIS | aaa | EG55 | |
| R114.4545.14 | 9 | 9 | 13.5 | 0.1 | 3 | 14 | 114090R | ▲ | ||
| L114.4545.14 | 9 | 9 | 13.5 | 0.1 | 3 | 14 | 114090L | ⃤ | ||
Machining IN-FRONT of centre line R = rotation clockwise! Using the face grooving insert type 114 on toolholder type B114 the size l1 and l2 will be enlarged by 3.0 / 5.5 or 6.5 mm. |
P | |||||||||
| M | ||||||||||
| K | ||||||||||
| N | ||||||||||
| S | ||||||||||
| H | ||||||||||
We reserve the right to make technical changes.
