Mini 116 |
| Insert Ø ≥ 16 mm | |||||||||
 Internal Grooving with Chamfer |
 Internal Boring and Grooving Chamfer |
 Internal Chamfering |
 Internal Back Turning |
||||||
 |
 |
| R = right hand version shown L = left hand version ▲ on stock ⃤ 4 weeks Carbide Grades | ||||||||||||

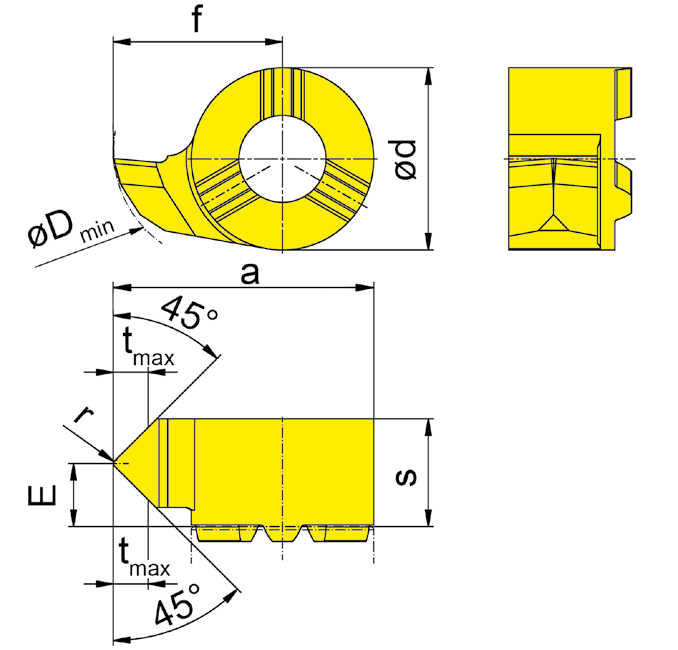

| Part number | E | s | f | a | r | d | tmax | Dmin | HIS | aaa | EG55 | |
| R116.4545.02 | 3.8 | 6.5 | 10.2 | 15.7 | 0.2 | 11 | 2.1 | 16 | 116110R | ▲ | ||
| L116.4545.02 | 3.8 | 6.5 | 10.2 | 15.7 | 0.2 | 11 | 2.1 | 16 | 116110L | ⃤ | ||
| P | ||||||||||||
| M | ||||||||||||
| K | ||||||||||||
| N | ||||||||||||
| S | ||||||||||||
| H | ||||||||||||
We reserve the right to make technical changes.
