Supermini 105 |
| S105 Insert | |||||||||
 Geometry U |
 Internal Boring and Grooving Chamfer |
 Internal Boring |
 Internal Coolant |
||||||
 |
 |
| R = right hand version shown ▲ on stock ⃤ 4 weeks Carbide Grades | |||||||||||||

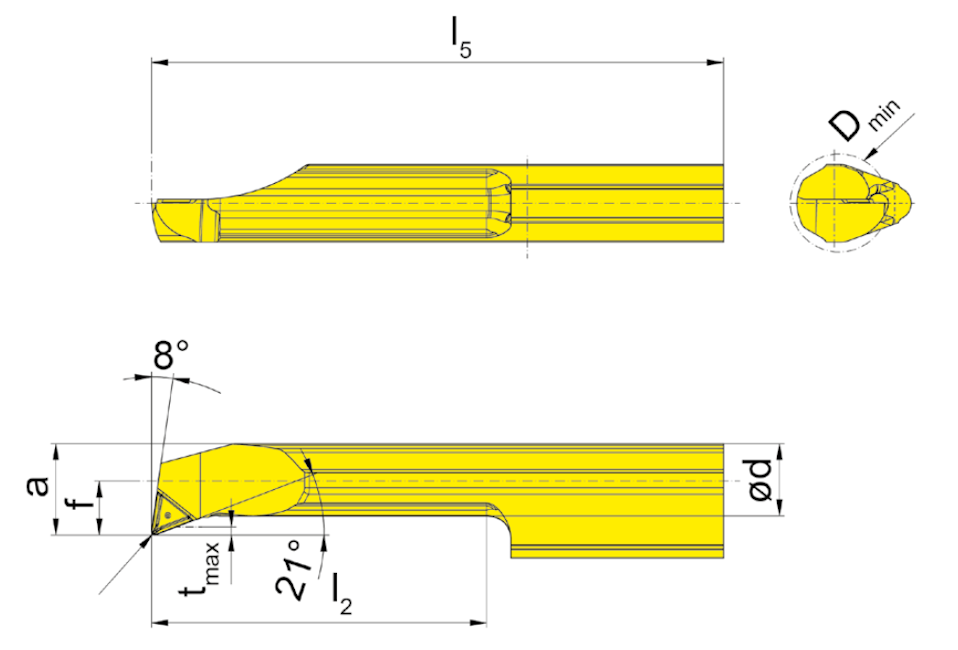

| Part number | r | f | a | d | b | l2 | l5 | tmax | Dmin | HIS | aaa | IG35 | TH35 |
| RS105.1833.2.4.U20 | 0.2 | 3.3 | 3.7 | 2.5 | 7 | 15 | 30 | 0.5 | 4 | 105125 | ▲ | ▲ | |
| RS105.1833.3.4.U20 | 0.2 | 3.3 | 3.7 | 2.5 | 7 | 20 | 35 | 0.5 | 4 | 105125 | ▲ | ▲ | |
| RS105.1833.2.5.U20 | 0.2 | 3.3 | 4.7 | 3.5 | 7 | 15 | 30 | 0.5 | 5 | 105125 | ▲ | ▲ | |
| RS105.1833.3.5.U20 | 0.2 | 3.3 | 4.7 | 3.5 | 7 | 20 | 35 | 0.5 | 5 | 105125 | ▲ | ▲ | |
| RS105.1833.4.5.U20 | 0.2 | 3.3 | 4.7 | 3.5 | 7 | 25 | 40 | 0.5 | 5 | 105125 | ▲ | ▲ | |
| RS105.1833.2.6.U20 | 0.2 | 3.3 | 5.6 | 4.4 | 7 | 15 | 30 | 0.5 | 6 | 105125 | ▲ | ▲ | |
| RS105.1833.3.6.U20 | 0.2 | 3.3 | 5.6 | 4.4 | 7 | 20 | 35 | 0.5 | 6 | 105125 | ▲ | ▲ | |
| RS105.1833.4.6.U20 | 0.2 | 3.3 | 5.6 | 4.4 | 7 | 25 | 40 | 0.5 | 6 | 105125 | ▲ | ▲ | |
| P | |||||||||||||
| M | |||||||||||||
| K | |||||||||||||
| N | |||||||||||||
| S | |||||||||||||
| H | |||||||||||||
We reserve the right to make technical changes.
