Mini 111 |
| B111 Toolholder | |||||||||
 Internal Grooving |
 Internal Boring |
 Internal Coolant |
|||||||

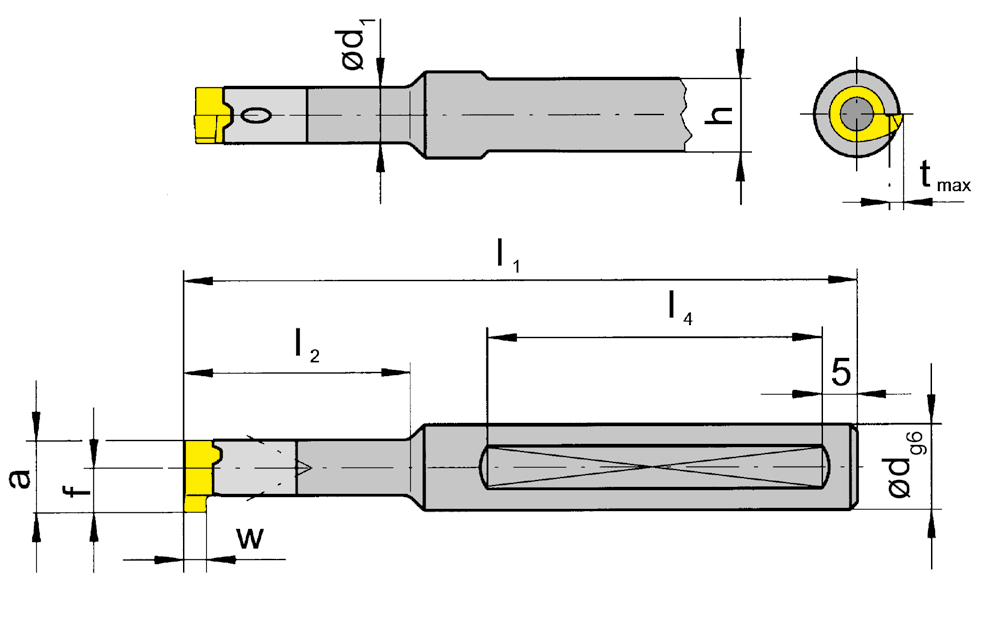

 R = right hand version shown |
 |
| Part number | d | l1 | l2 | h | l4 | d1 | HWS |
| B111.0012.2.00 | 12 | 75 | 16.5 | 11 | 40 | 8 | 111080R • 111080L |
| B111.0012.2.01 | 12 | 95 | 29 | 11 | 50 | 8 | 111080R • 111080L |
| B111.0012.2.02 | 12 | 110 | 42 | 11 | 50 | 8 | 111080R • 111080L |
| B111.0012.2.03 | 12 | 120 | 56 | 11 | 50 | 8 | 111080R • 111080L |
w, a, tmax and f see inserts |
|||||||
| Spare Parts | Toolholder | Clamping Screw | TORX PLUS® Wrench |
| B111... | 3.5.12T10EP | T10PL |
We reserve the right to make technical changes.
